What Melt Flow Rate Works Best for PP Strapping Extrusion?

Polymer extrusion demands exact engineering. Minor variances in resin properties directly dictate the mechanical integrity of the final product. Selecting the wrong Melt Flow Rate (MFR) or Melt Flow Index (MFI) for polypropylene causes severe production inefficiencies. Operators frequently deal with melt sag, inconsistent strap dimensions, line breaks during orientation, and compromised tensile strength when resin viscosity falls outside process parameters. Viscosity provides the primary resistance to flow. Miscalculating this metric means the polymer either collapses upon exiting the die or generates dangerous backpressure within the extruder barrel. We will evaluate the technical framework for selecting the optimal MFR. This ensures you maximize throughput, stabilize dimensions, and maintain superior product quality on your extrusion line.

• Optimal Range: Extrusion requires a significantly lower MFR (typically 1.0 to 3.5 g/10 min) compared to injection molding to maintain necessary melt strength.
• The Molecular Trade-off: Lower MFR correlates with higher molecular weight, yielding superior tensile strength and split resistance, but requires higher extruder torque and energy consumption.
• Machinery Dependency: The ideal MFR is heavily dictated by the specific screw design, die configuration, and stretching capabilities of your PP packing strap extrusion machine.
• Material Consistency: Blending virgin and recycled PP requires strict MFR homogenization and routine melt flow testing to prevent localized weak points in the strapping tape.

Understanding Melt Flow Rate in PP Strapping Production

Viscosity and Molecular Weight Dynamics

Melt Flow Rate measures how many grams of a polymer flow through a standard capillary die in 10 minutes under a specific weight and temperature. Industry standards for polypropylene dictate testing at 230°C with a 2.16 kg load using a plastometer. This physical measurement serves as a direct indicator of the polymer's molecular weight and molecular weight distribution (MWD). Viscosity represents the material's resistance to flow. Long polymer chains tangle heavily, creating high resistance, high viscosity, and a correspondingly low MFR. Shorter polymer chains slip past one another with minimal friction, resulting in low viscosity and a high MFR. In the production of PP strapping, this resistance stands as the primary success criterion for resin selection. You need enough entanglement to build strength, but enough flow to process the material without destroying the extruder gearbox.

The Plastics Processing Spectrum

Operators sometimes select incorrect resins based on warehouse availability rather than physical properties. Injection molding relies heavily on high MFI resins, typically ranging from 10 to 30 g/10 min. The plastic must flow rapidly, acting almost like a liquid to completely fill complex mold cavities before premature cooling occurs. Using an injection-grade resin in an extrusion process guarantees immediate failure. The material completely lacks the necessary melt strength. When a high-MFI polymer exits the extrusion die, it sags, collapses, and loses its rectangular profile before it reaches the quenching bath.

Blow molding requires extreme melt strength to hold a suspended, hollow bubble shape against gravity, utilizing highly viscous resins with an MFI between 0.2 and 0.8. Strapping extrusion occupies the critical middle ground. The optimal sweet spot sits between 1.0 and 3.5 g/10 min. This specific range provides enough structural integrity to bridge the physical air gap between the heated die lip and the chilled water bath, while remaining fluid enough to process without overloading the extruder's drive motor.

Impact on Molecular Orientation

During the stretching phase of a PP strapping production line, molecular orientation dictates final performance. The polymer chains must align parallel to the machine direction. Lower MFR resins, possessing longer molecular chains, provide significantly more entanglement points. When the godet rollers apply tension in the heating oven, these tangles lock together tightly. The draw ratio typically hits 1:6 or 1:7. This dense molecular alignment creates the immense tensile strength required for securing heavy pallets and industrial loads. If the chains are too short, they pull apart instead of aligning, destroying the strap's load-bearing capacity.

Establishing the Target MFR Range for Extrusion

Low MFR Resins (0.5 – 1.5 g/10 min): Maximizing Tensile Strength

Manufacturers select low MFR resins when engineering heavy-duty, machine-grade strapping designed to replace traditional steel bands. The high molecular weight delivers exceptional melt strength and superior mechanical properties. The resulting strap exhibits massive break strength and excellent creep resistance under sustained loads. Processing these materials introduces severe mechanical challenges on the factory floor. High viscosity translates directly to high physical resistance inside the barrel. The extruder requires robust gearboxes, heavy-duty thrust bearings, and high-torque motors to push the stiff melt forward. Operators must elevate barrel zone temperatures to force the material through the die, which dramatically increases the risk of shear degradation. If the mechanical friction of the screw physically tears the polymer chains apart, the material properties degrade before the plastic even exits the machine.

Medium MFR Resins (1.5 – 3.5 g/10 min): The Industry Standard

The 1.5 to 3.5 g/10 min range represents the undisputed industry standard. This specific viscosity offers the optimal balance between processability and end-product performance. Extruders consume less electrical energy, output remains highly stable, and the risk of shear heating drops significantly. This range perfectly suits standard hand-grade and light-duty machine-grade applications produced on a standard packaging belt production line. Operators achieve consistent dimensional tolerances, uniform embossing patterns, and reliable camber without pushing the mechanical equipment to its absolute limits.

High MFR Resins (>3.5 g/10 min): Risks and Limitations

Pushing beyond an MFR of 3.5 introduces critical risks and severe mechanical limitations. The primary failure mode is melt sag at the die exit. The polymer droops immediately, causing uneven thickness, warped edges, and inconsistent cooling in the water bath. These resins cannot withstand high draw ratios during the orientation phase. Polypropylene with an MFI of approximately 3.6 and above crosses the chemical threshold for fiber spinning. Polymer chemists design these high-flow resins specifically for manufacturing monofilament fibers, textiles, and non-woven fabrics. When applied to strapping extrusion, the short molecular chains fail to entangle sufficiently. Under tension, the strap suffers severe fibrillation, splitting longitudinally into stringy fibers rather than maintaining a solid, cohesive band.

Machinery Capabilities: Matching Resin to Your Equipment

Screw Design and L/D Ratios

The ideal MFR depends heavily on the specific mechanical design of the extrusion equipment. The Length-to-Diameter (L/D) ratio and the compression profile of the extruder screw dictate the machine's ability to process specific viscosities. A higher L/D ratio, such as 30:1 or 33:1, provides a longer barrel for gradual melting and thorough mixing. Processing low-MFR resins requires a screw profile designed specifically to minimize excessive shear heating. Barrier flights and specialized Maddock mixing sections ensure the high-viscosity melt becomes thermally homogenous without degrading the polymer chains under their own friction. If you run a low MFR resin on a short 24:1 screw, you will encounter un-melted particles and severe pressure surging.

Melt Pumps and Die Head Configurations

Melt pumps play a critical role in managing viscosity variations and stabilizing output. Positioned between the extruder and the die, a gear-driven melt pump acts as a positive displacement device. It absorbs the surging and pressure fluctuations inherent to the screw's rotation, delivering a perfectly consistent volume of plastic to the die head. This stabilization proves essential when running materials with slight MFR variations, ensuring uniform thickness and width across the entire PP fibre packing strapping tape production line. The die head itself must feature adjustable lips to accommodate the specific die swell associated with different viscosities. High viscosity resins exhibit greater die swell, requiring a tighter die gap setting to achieve the target strap thickness.

Cooling and Stretching Capacities

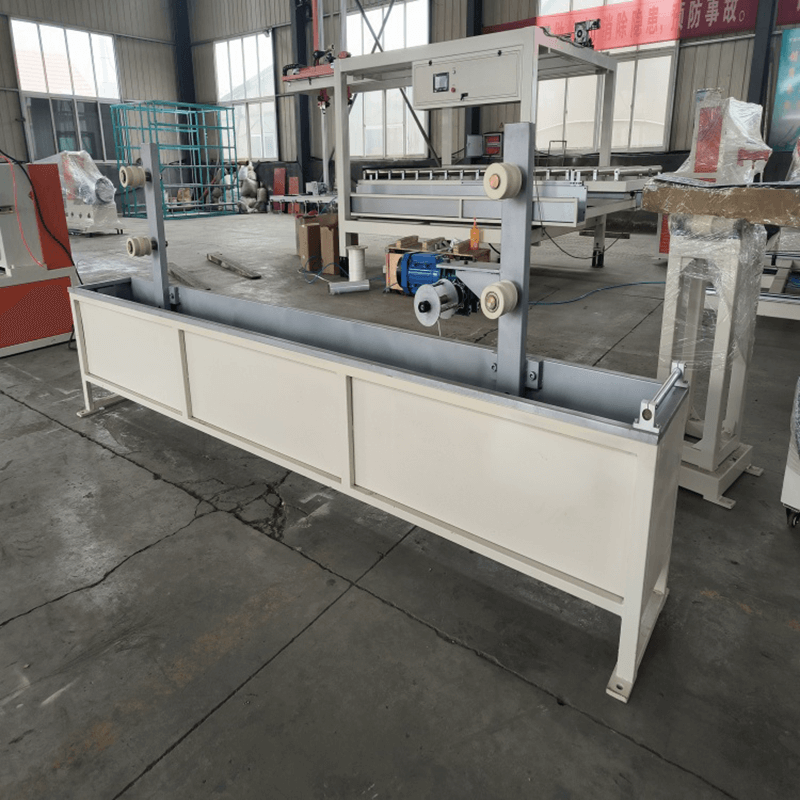

Cooling and stretching capacities must align perfectly with the resin's physical properties. Lower MFR materials require specific quenching temperatures in the water bath to control the rate of crystallization. The air gap between the die and the water surface must remain under 30mm to prevent gravity-induced necking. If the cooling rate does not match the line speed, the polymer becomes either too brittle or too soft before entering the stretching oven. The godet rollers must apply exact tension. High-viscosity resins tolerate aggressive draw ratios, but the forced hot air or infrared oven temperature must be precisely calibrated, typically between 150°C and 170°C. The heat must soften the thick material enough to allow molecular alignment without causing the strap to snap under the extreme tension.

Trade-Offs and Overall Value Influencing Factors

Virgin vs. Recycled PP (RPP)

Utilizing virgin versus recycled PP introduces complex economic and technical trade-offs on the factory floor. Virgin resin provides a stable, predictable MFR, guaranteeing consistent processing parameters and steady extruder head pressure. Recycled flakes or pellets inherently possess a fluctuating and degraded MFR. Every time polypropylene undergoes a thermal cycle, heat breaks the polymer chains, permanently increasing the MFR. A single batch of post-consumer recycled material might vary from 2.0 to 5.0 MFI within the same hopper.

To stabilize the overall MFR, manufacturers must employ aggressive compounding strategies. Blending fractional-melt virgin PP with the recycled flake brings the average viscosity back into the optimal 1.5 to 3.5 range. Adding chemical chain extenders during the compounding phase repairs broken polymer chains, restoring the necessary melt strength. Operators must also utilize continuous screen changers to filter out unmelted contaminants that frequently accompany recycled feedstocks, preventing die lip blockages.

Energy Consumption vs. Throughput

Energy consumption versus throughput represents a critical operational calculation. Processing low-MFR resins requires significantly higher motor load. The extruder draws massive amperage to rotate the screw against the thick, highly resistant melt. This increases electrical costs per kilogram of output and accelerates mechanical wear on the thrust bearings and gearbox components. Plant managers must weigh these increased operational expenses against the premium pricing commanded by high-tensile strapping. Running a higher MFR resin increases throughput and lowers energy costs, but restricts the final product to lighter-duty applications with lower profit margins. You must match the resin viscosity to the specific market segment you intend to supply.

Implementation Risks and Quality Control Mitigations

Incoming Material Verification and Melt Flow Testing

Incoming material verification forms the first line of defense against extrusion failures. Relying solely on supplier specification sheets invites disaster, particularly when utilizing recycled materials. Facilities must implement rigorous in-house melt flow testing using a standardized plastometer. Verifying the exact viscosity and MFR of incoming resin batches before they enter the hopper prevents hours of contaminated production, excessive downtime, and wasted scrap material. A shift supervisor should pull samples from every new supersack and log the MFR before authorizing the material for the main silos.

Troubleshooting Melt Fracture and Dimensional Instability

Troubleshooting melt fracture requires immediate operator intervention. When the MFR is too low for the current operating temperature, the material experiences extreme shear stress at the die lip. This manifests physically as "sharkskin"—a rough, matte, or fractured surface finish—along with uneven, wavy edges. Mitigation steps include increasing the die zone temperatures to reduce surface viscosity, optimizing the die gap to lower shear rates, and modifying the screen packs to adjust internal backpressure.

Preventing Fibrillation During the Stretching Phase

Preventing fibrillation during the stretching phase requires careful tension and temperature control. Over-drawing a high-MFR resin stretches the short polymer chains far beyond their entanglement limits. The resulting straps become highly brittle, splitting lengthwise under minimal tension. Operators must reduce the draw ratio and lower the stretching oven temperature to accommodate the weaker molecular structure, sacrificing some tensile strength to maintain the physical integrity of the band. Proper annealing in a secondary relaxation oven also helps lock the molecular structure in place, preventing post-extrusion shrinkage and splitting.

Automation and Process Control

Automation provides the ultimate risk mitigation against material variations. Upgrading to a computerized PP strapping strap band belt machine eliminates the guesswork of manual adjustments. These automated systems utilize closed-loop feedback from real-time pressure transducers and inline thickness gauges. If a pocket of higher MFR resin enters the barrel, the system detects the immediate pressure drop and instantly adjusts the melt pump RPM and line speed to compensate. This ensures that minor material inconsistencies do not result in rejected coils or compromised dimensions.

Conclusion

1. Conduct a pilot run using a 2.0 MFR virgin baseline resin to establish perfect machine centerlines and baseline pressures.
2. Perform rigorous tensile and split-resistance testing on the baseline strap before introducing recycled content.
3. Introduce recycled blends incrementally, testing the blended MFR using an in-house plastometer prior to extrusion.
4. Consult with the machinery manufacturer to verify maximum gearbox torque limits before trialing fractional-melt resins.

FAQ

Q: What is the ideal Melt Flow Index (MFI) for PP strapping?

A: The ideal MFI ranges from 1.0 to 3.5 g/10 min. This specific viscosity provides the exact melt strength required for extrusion, allowing the polymer to hold its rectangular shape as it exits the die and enters the cooling bath without sagging or creating excessive backpressure.

Q: Why can't I use injection molding grade PP for strapping extrusion?

A: Injection molding PP features a high MFI of 10 to 30, designed for fast, liquid-like flow into complex molds. It completely lacks the melt strength needed for extrusion. If used, the material will collapse and lose its shape immediately upon exiting the extrusion die.

Q: How does MFR affect the tensile strength of a packaging belt?

A: MFR and tensile strength share an inverse relationship. A lower MFR indicates a higher molecular weight and longer polymer chains. These longer chains create greater flow resistance but allow for stronger molecular entanglement and orientation during the stretching phase, resulting in significantly higher tensile strength.

Q: Can I use 100% recycled PP in a PP strapping production line?

A: While feasible, 100% recycled PP often possesses a degraded, higher MFR due to previous thermal cycles. Maintaining extrusion stability requires careful blending with virgin fractional-melt PP, the addition of chain extenders, and routine in-house melt flow testing to prevent weak spots and line breaks.

Q: What causes PP strapping to split lengthwise (fibrillate)?

A: Fibrillation occurs when using a resin with an MFR that is too high—approaching fiber-spinning grades of 3.6 or above. It also happens when applying an excessive draw ratio during the stretching phase, which pulls the short polymer chains apart instead of aligning them.

Q: How do I adjust my PP packing strap extrusion machine for a lower MFR resin?

A: Processing lower MFR resin requires increasing barrel temperatures slightly to improve flow. Operators must closely monitor the extruder motor load due to increased resistance and adjust the melt pump RPM to handle the higher viscosity without exceeding the gearbox's torque limits.
