What Output and Width Can a Drainage Board Line Achieve?

Procuring a production line for drainage boards requires aligning machinery specifications with specific market demands. Over-specifying leads to wasted capital and unused capacity. Under-specifying bottlenecks revenue and limits lucrative contract opportunities.

For plant managers and investors, evaluating these lines comes down to verifying two core metrics. You must understand maximum reliable output limits and viable product width constraints. Manufacturers often state theoretical maximums, making it difficult to gauge actual daily performance accurately.

This article breaks down the realistic output capabilities and width parameters of modern extrusion equipment. We provide a framework to match machinery capabilities directly to operational goals. You will learn how to verify specifications without falling for exaggerated manufacturer claims.

Key Takeaways

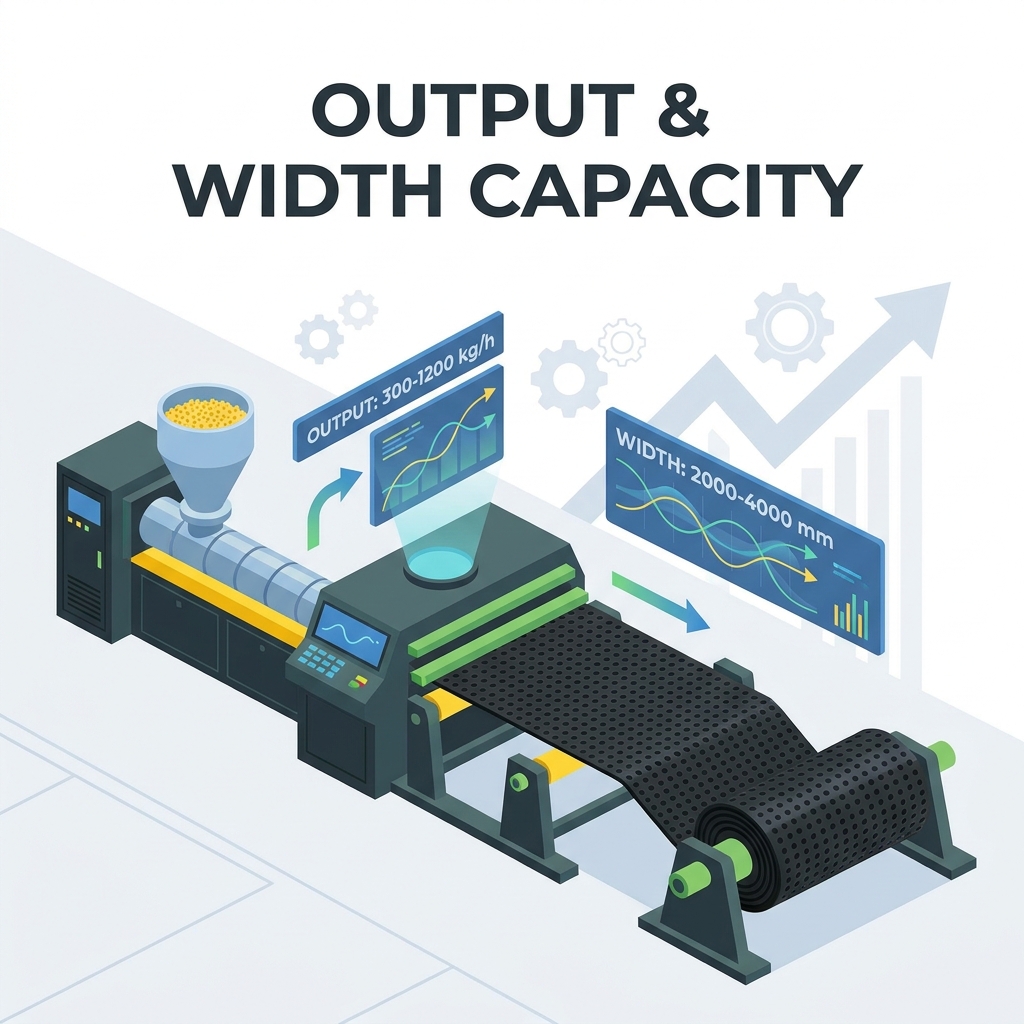

• Output Baselines: Standard commercial lines typically yield between 300 kg/h and 1,200 kg/h, heavily dependent on extruder configuration and material melt flow rates.
• Width Parameters: Typical viable widths range from 2,000mm to 4,000mm, balancing civil engineering application needs with shipping and handling constraints.

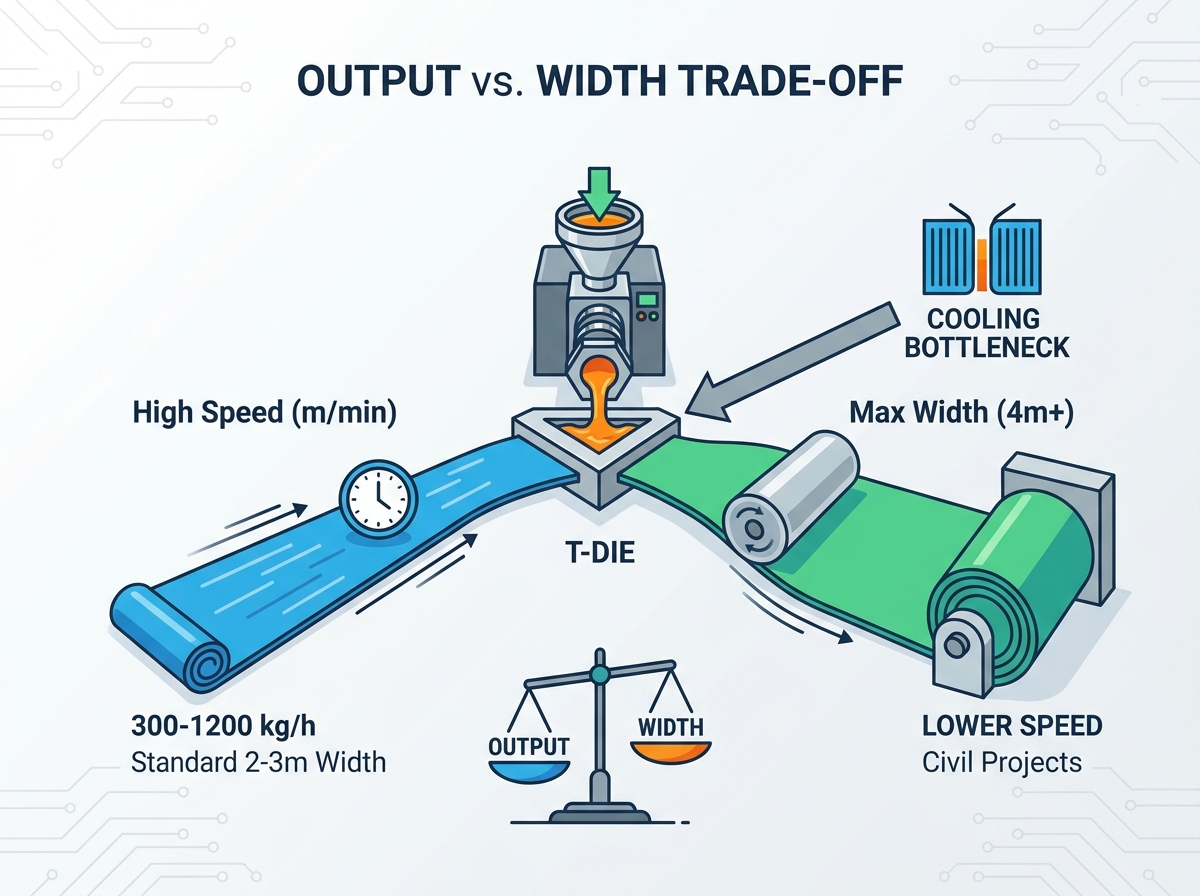

• Cooling Constraints: Maximum output is often limited not by extrusion power, but by the downstream cooling and forming system's ability to stabilize wide sheets.
• Facility Realities: Wider output requires exponentially larger floor space for downstream winding and higher localized power grid capacities.

1. Defining Standard Output Capacities for Drainage Board Production

Understanding the true output capacity of your equipment is the foundation of production planning. Manufacturers categorize machines by throughput metrics, usually measured in kilograms per hour (kg/hr). However, translating this raw weight into sellable product requires looking at linear speed and material behavior.

Throughput Metrics (kg/hr)

Modern equipment falls into several distinct capacity tiers. Entry-level machines generally process between 300 and 500 kg/h. These lines suit regional manufacturers targeting residential and light commercial markets. Mid-range systems typically deliver 600 to 800 kg/h, offering a solid balance of speed and stability. High-capacity industrial lines can exceed 1,000 to 1,200 kg/h. You typically deploy these massive systems for large-scale civil engineering contracts requiring uninterrupted volume.

Linear Speed (m/min)

Weight alone does not dictate profitability; operational speed does. Linear speed translates the raw polymer melt into continuous board length. Depending on the final board thickness and dimple depth, operational speeds typically range from 2 to 8 meters per minute. A thick 20mm dimple board will run significantly slower than an 8mm dimple board. The deeper the dimple, the more material stretches, requiring longer contact time on the forming roller to stabilize.

Material Impact on Output

Your raw material heavily dictates the maximum reliable speed. Using 100% virgin High-Density Polyethylene (HDPE) allows you to push line speeds to their upper limits safely. Virgin material offers predictable melt flow and consistent tensile strength. Conversely, introducing high percentages of recycled HDPE alters the melt flow index. Recycled material contains impurities. It often forces operators to reduce line speeds to prevent tears or defects during the dimple forming process. If you push recycled blends too fast, you risk inconsistent dimple walls and compromised compressive strength.

Machine Synergy: The Holistic View

It is a common mistake to evaluate a plastic drainage sheet extrusion machine purely based on its main motor capacity. Output must be measured across the entire line. The extruder might melt 1,000 kg/h, but if the vacuum forming roller and cooling system cannot extract heat fast enough, you cannot utilize that capacity. The slowest component dictates your maximum yield.

Typical Capacity and Speed Correlation

2. Achievable Widths: Standard vs. Custom Specifications

Selecting the right product width impacts everything from die design to final shipping logistics. While extrusion technology allows for massive scale, market realities often dictate specific width parameters.

The Industry Standard (2m – 3m)

The vast majority of machines produce widths between 2,000mm and 3,000mm. These dimensions dominate the market for practical reasons. First, standard shipping containers (like the 40-foot High Cube) easily accommodate rolls of this size. Second, construction crews handle 2m to 3m rolls efficiently on site. Anything wider often requires specialized lifting equipment, increasing installation complexity for contractors.

Maximum Width Capabilities (Up to 4m+)

Large-scale civil projects frequently demand ultra-wide solutions. Massive tunnel drainage systems, highway sub-bases, and landfill capping projects benefit from fewer seams. For these applications, you might procure HDPE drainage board equipment capable of producing 4,000mm (4-meter) or even 5,000mm widths. However, these machines represent a massive capital leap. They require highly specialized engineering to prevent sagging across the die lip.

Width vs. Edge Trim Reality

Theoretical die width never matches the final product width exactly. Extrusion naturally creates uneven edges that you must trim before winding. A T-die designed for 3,200mm will typically yield a clean, finished drainage board of 3,000mm. You must factor this edge trimming process into your material calculations. Most modern lines include inline edge-trim granulators. These granulators immediately feed scrap material back into the extruder, minimizing raw material waste.

Flexibility and Energy Inefficiencies

A common question arises: Can we run narrow boards on a wide machine? You can run a 1,500mm board on a 3,000mm machine by deckling the die. However, doing so is highly inefficient. You still expend energy to heat the entire 3-meter die block and turn massive cooling rollers. Operating a wide machine at half its width destroys your energy efficiency metrics and reduces your overall profit margins. It is generally better practice to match the machine width closely to your primary sales volume.

3. Key Technical Variables That Constrain Output and Width

Pushing a machine to its stated limits requires a deep understanding of its internal mechanics. Several technical variables directly dictate whether you can achieve wide, high-volume production.

Extruder Size and L/D Ratio

The heart of any production line is the main screw. The relationship between the screw diameter and its Length-to-Diameter (L/D) ratio determines melting efficiency. To uniformly melt high volumes of polymer for wide sheets, you need a high L/D ratio, typically 33:1 or 36:1. A longer screw provides more residence time for the plastic. It ensures a homogenous melt without degrading the polymer. If the L/D ratio is too low, un-melted particles can reach the die, causing holes or weak spots in the final sheet.

T-Die Design and Melt Distribution

Maintaining uniform thickness across a 3m to 4m width is a severe engineering challenge. The polymer must flow from the center of the die to the extreme edges at the exact same pressure and temperature. High-quality dies utilize internal restrictor bars and flex lips to manage this distribution. If pressure drops at the edges, the board will be thinner on the sides than in the middle. This variation creates structural weaknesses and winding problems.

The Cooling Bottleneck

Extruders can melt plastic incredibly fast, but cooling sets the ultimate speed limit. The vacuum forming and cooling roller system acts as the true governor of line speed. Faster output requires drastically extended cooling zones. If you pull the sheet off the forming roller before it cools adequately, the dimples will collapse. Warping occurs, and the sheet loses its structural integrity. Upgrading your cooling water circulation system often yields higher output than upgrading the main motor.

Dimple Roller Customization

You must carefully match the depth and density of the forming roller to your speed expectations. Investing in a customizable drainage board production line allows you to swap rollers for different products. Deep dimples (e.g., 30mm) require the plastic to stretch significantly further into the mold. This stretching demands more vacuum force and longer cooling time, inherently reducing your maximum safe pull speed. Shallow dimples (e.g., 8mm) can run at much higher speeds.

4. Decision Framework: Evaluating Machine Specs Against Business Goals

Choosing the right machine involves more than comparing spec sheets. You must align equipment capabilities with your target market and financial model.

High-Volume Commodity vs. Niche Production

Your primary market dictates your machine choice. If you target residential waterproofing and standard commercial builds, a high-speed 2-meter line serves you best. These standard boards represent a high-volume commodity market where fast output wins. Alternatively, if you target specialized civil engineering projects, a slower, customized 4-meter line becomes highly lucrative. Niche markets pay a premium for seamless, ultra-wide boards, justifying the slower production speed.

Power Consumption vs. Output (ROI Lens)

Evaluate machines through an efficiency lens using the kilowatt-per-kilogram (kW/kg) metric. A massive motor that produces 1,000 kg/h looks impressive. However, if it consumes disproportionately high electricity to achieve that rate, your profit margins shrink. Running an oversized machine at half capacity wastes tremendous energy. You should size the drainage board production line so it runs continuously at 80% to 90% of its maximum capacity for optimal energy efficiency.

Compliance and Quality Consistency

Speed means nothing if the final product fails testing. You must ensure the machine maintains structural integrity at its maximum claimed output speed. Boards must meet strict compressive strength standards. When running at maximum speed, variations in cooling can create brittle dimples. Request testing data from the manufacturer proving that boards produced at top speed still pass standard compression tests.

Scalability and Co-Extrusion

Future-proofing your investment requires considering scalability. Single-screw systems are standard, but co-extrusion technology offers distinct advantages. A co-extrusion system uses multiple extruders (often in an A-B-A configuration). This setup allows you to use cheap, recycled material for the thick inner core, while utilizing virgin material for the smooth outer skin. Assess whether a single-screw machine can integrate co-extrusion upgrades later to improve your material cost efficiency.

Best Practices for Evaluating Specifications

• Verify the cooling capacity (chiller size) matches the extruder output.
• Demand die-head specifications detailing edge-trim waste percentages.
• Calculate energy consumption based on your local electricity rates at maximum load.
• Inspect the vacuum pump system supporting the dimple forming roller.

5. Implementation Realities and Facility Risks

Installing industrial extrusion equipment changes the dynamic of your entire facility. You must prepare the physical space and infrastructure long before the machinery arrives.

Footprint Requirements

The real-world space needed for a wide-format machine is immense. A 4-meter plastic sheet production line does not just require 4 meters of width. You need extensive clearance for material handling, massive winding stations, and safe forklift access. Furthermore, wide lines are incredibly long. The extruder, forming roller, cooling bracket, haul-off, and winder can easily stretch 30 to 40 meters. You must also leave ample space around the T-die for maintenance and die cleaning.

Power Grid Infrastructure

Industrial extruders draw massive electrical loads. You face the hidden cost of upgrading factory transformers. The initial heating phase—bringing the massive die and barrel up to melting temperature—creates a massive power spike. Furthermore, the main drive motor requires continuous, heavy torque. A large line may require a dedicated 400 kVA or 600 kVA transformer. Failing to audit your factory's localized power grid will delay commissioning for months.

Operator Expertise

Stabilizing wide-format extrusion requires high-level operator skill. Wider sheets are significantly more susceptible to edge curling, thickness variations, and tearing during startup. Adjusting a 4-meter die lip to achieve uniform thickness takes patience and experience. You must invest in comprehensive training. Novice operators will generate massive amounts of scrap plastic before dialing in the correct parameters on a wide machine.

Material Handling Logistics

Feeding a line running at 1,000 kg/hr changes your logistics entirely. Manual feeding is structurally impossible at this output scale. You must integrate automated silos, pneumatic loaders, and gravimetric dosing systems. These automated blenders ensure the exact ratio of virgin pellets, regrind, and color masterbatch enters the hopper seamlessly. If material feeding stutters, the extruder starves, causing catastrophic sheet breaks.

Conclusion

Procuring the right extrusion equipment requires looking past basic output claims and understanding the holistic system. Base your final procurement decisions on verified downstream cooling capacity and T-die engineering quality, rather than just the theoretical maximum output of the main motor. A balanced line produces stable, high-quality boards efficiently.

To move forward confidently, take specific action steps. Request verifiable case studies from manufacturers showing sustained 24-hour run data. Most importantly, mandate a Factory Acceptance Test (FAT). Require the manufacturer to run your specific material blend, at your required target width and speed, before you grant final sign-off. This hands-on verification protects your investment and ensures your operational goals remain attainable.

FAQ

Q: Can a 3-meter drainage board line be adjusted to produce 2-meter rolls?

A: Yes, but it requires edge trimming or die-deckling, which can lead to higher scrap rates and energy inefficiency compared to a dedicated 2-meter line. Heating and cooling unused sections of the machine wastes significant electricity.

Q: How does dimple height affect the production speed?

A: Deeper dimples (e.g., 20mm vs. 8mm) require more material stretch and longer cooling times on the forming roller, naturally reducing the maximum meters-per-minute output. The vacuum needs more time to shape the thicker material securely.

Q: Is a co-extrusion line slower than a single-screw drainage board line?

A: Not necessarily. While mechanically more complex, co-extrusion can sometimes run at similar speeds if the melt flow indexes of the different layers are properly matched, allowing for cost savings by using recycled core materials without sacrificing pace.

Q: What is the standard lead time to install a custom-width production line?

A: Customizable extrusion machinery typically requires a 3 to 5-month manufacturing lead time, plus 3 to 4 weeks for installation, calibration, and operator training at the facility. Complex 4-meter lines often push to the longer end of this schedule.
