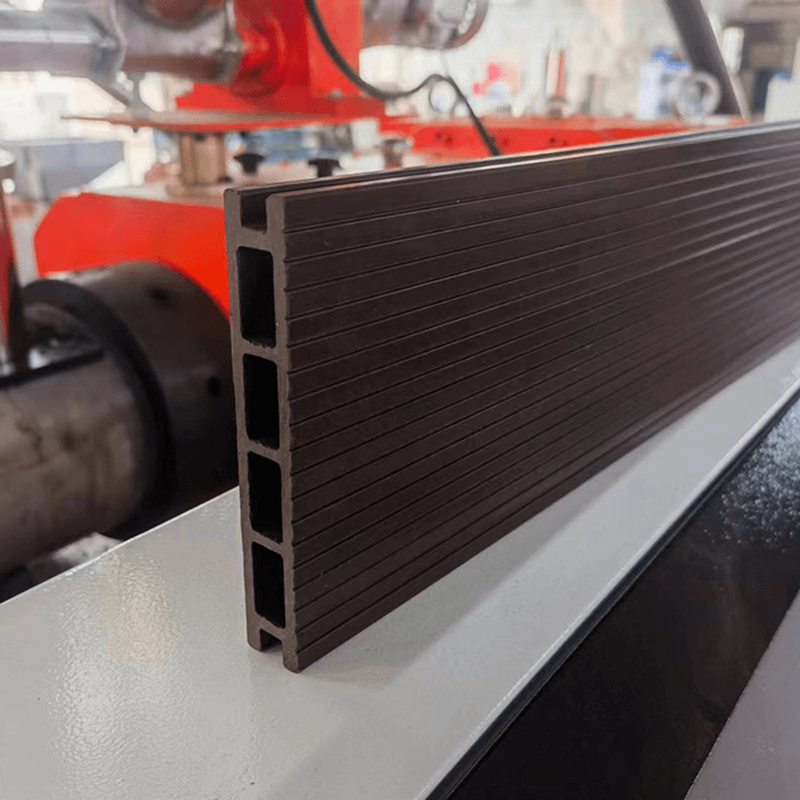

Which Inline Finishing Options Fit Plastic Profile Production?

In high-volume extrusion, secondary processing and manual handling create massive bottlenecks. Transferring a raw plastic profile to an offline station for cutting, punching, or surface treatment introduces unnecessary work-in-progress inventory. It drives up labor costs and multiplies the risk of handling damage before the product even reaches the shipping dock. Integrating finishing processes directly into the extrusion line eliminates these handling steps entirely. The product passes seamlessly from the die, through the calibration table, directly into downstream converting processes and final packaging. This guide evaluates the technical feasibility, equipment requirements, and implementation risks of inline finishing for extrusion operations. We will break down how to match specific finishing technologies to polymer behaviors, ensuring you maintain continuous line speeds without sacrificing dimensional accuracy or surface quality.

• Inline finishing reduces labor and floor space requirements but requires strict synchronization with extruder haul-off speeds to prevent line bottlenecks.

• Surface finishing (embossing, lamination, gloss/metallic capping) and inline machining (punching, routing) are the most viable inline upgrades for high-volume, standardized runs.

• Material behavior dictates equipment selection; a WPC plastic profile production line requires different cooling and handling tolerances than a standard rigid PVC line.

• Successful integration relies on customizable PVC profile machinery equipped with closed-loop PLC controls and encoder feedback to ensure dimensional accuracy at continuous line speeds.

The Business Case: Inline vs. Offline Finishing in a Plastic Profile Production Line

Defining the threshold for inline equipment investment requires a hard look at operational expenses versus capital expenditures. Success on the factory floor hinges on achieving a reduced cost-per-foot, lowering scrap rates during changeovers, and increasing overall throughput. You must evaluate whether the continuous flow of an integrated plastic profile production line outweighs the flexibility of decoupled offline stations.

Inline finishing creates a continuous manufacturing flow. It drastically reduces manual labor requirements because operators no longer need to move carts of raw extrusions across the facility. Work-in-progress inventory drops to zero. The primary trade-off involves line dependency. If the inline finishing unit faults due to a jammed router bit or a torn lamination film, the entire extrusion line must stop. Halting the extruder risks material degradation inside the heated barrel. It also generates startup scrap when the line resumes, as the thermal profile of the die needs time to stabilize.

Offline finishing decouples the extrusion process from secondary operations. This approach offers higher flexibility for short, customized runs. Extruder uptime remains protected from downstream mechanical jams. However, offline processing demands higher labor costs. It requires significant floor space for staging raw profiles on specialized racks to prevent bowing. Batch-processing delays naturally extend lead times, making it harder to respond to urgent orders.

Hybrid or near-line finishing offers a practical middle ground. Operators position modular finishing stations directly at the end of the extrusion line. These units operate independently from the extruder's master control panel. They process profiles immediately after the cutoff saw. This setup suits complex custom profiles requiring multiple fabrication steps without risking extruder shutdowns.

Several factors influence the overall value of these configurations. Volume consistency dictates the return on investment for inline automation. Profile complexity determines the necessary machining tolerances. You must balance the maximum extrusion speed against the maximum cycling speed of the finishing equipment. A mismatch here creates immediate bottlenecks, forcing you to run the extruder below its optimal output capacity.

Core Inline Finishing Technologies for Plastic Profile Extrusion

Surface Finishing and Texturing

Embossing involves the mechanical pressing of patterns into the profile surface. Common applications include faux wood grain textures for decking or fencing. The embossing wheel engages the polymer while it remains in a semi-molten or thermally receptive state. Precise temperature control at this stage prevents surface tearing while ensuring deep, permanent pattern transfer. If the profile is too cold, the wheel requires excessive pressure, which can crush hollow chambers. If it is too hot, the polymer sticks to the wheel, causing surface defects.

Foiling and lamination apply decorative films inline. The system uses heat and pressure rollers to bond the film to the substrate. This process is critical for architectural and fenestration profiles requiring specific aesthetic matches. Tension control on the film spool prevents wrinkling. Proper adhesive activation temperatures ensure long-term delamination resistance. Operators must monitor the nip roller pressure to avoid trapping air bubbles between the film and the profile surface.

Co-extrusion, or capping, applies a thin layer of specialized polymer over the base profile. This occurs during the primary extrusion phase inside the die. Manufacturers use capping to achieve high-gloss finishes, metallic aesthetics, or UV-resistant acrylic coatings. It eliminates the need for secondary painting or liquid coating stations. The challenge lies in matching the melt temperatures and rheology of the base and cap materials to prevent interfacial instability, often seen as wavy lines on the finished surface.

Inline Machining and Fabrication

Punching and notching utilize flying or traveling punch presses. These units synchronize exactly with the line speed. They clamp onto the moving profile, execute the punch, and return to their home position. This creates mounting holes or drainage slots without halting the continuous extrusion process. Servo-driven actuators provide the necessary speed and force. Tooling wear is a constant concern; punches must be sharpened regularly to prevent burrs and micro-cracking around the hole edges.

Drilling and routing require automated multi-axis spindles. These systems handle complex cutouts and precise hole patterns. Operating routers inline generates significant plastic chips. Robust swarf extraction systems are mandatory. Vacuum lines must pull chips away instantly to prevent surface defects as the profile moves through downstream rollers. Spindle speeds often exceed 18,000 RPM to ensure clean cuts without melting the plastic.

Precision cutting separates the continuous extrusion into discrete lengths. Fly-knife cutters work well for small, flexible profiles, slicing through the material in a fraction of a second. Traveling saws handle rigid, thick-walled geometries. Planetary saws rotate around the profile for clean, burr-free edges on tubular shapes. The saw carriage must match the haul-off speed perfectly to ensure square cuts. Any lag in the carriage movement results in angled cuts that fail quality control.

Thermal and Assembly Applications

Flaring and swaging reshape the ends of the profile inline. This technique serves interlocking applications common in conduit, drainage, and ducting profiles. Heating elements soften the profile end before a mechanical mandrel expands or shapes the opening. The profile then cools rapidly to lock in the new geometry. Precise control of the heating time and mandrel temperature is critical to prevent the plastic from thinning out excessively at the flared joint.

Butt welding and joining utilize automated thermal welding techniques. These stations sit at the end of the line. They join profiles into continuous lengths or pre-assembled frames prior to packaging. Hot plate welding melts the ends before pressing them together under controlled force. This creates strong, seamless joints for window frames or gaskets. The weld flash must be trimmed automatically to maintain a clean appearance.

Weatherstrip insertion automates the feeding and rolling of T-slot weatherstripping. The system presses gaskets directly into the cooling profile. This eliminates manual insertion during final window or door assembly. Inline tape application works similarly. Automated spooling and pressure rollers apply double-sided adhesive tapes precisely along the profile edge. The tape must be applied with consistent tension to prevent it from peeling off during thermal expansion and contraction of the profile.

Marking, Coding, and Traceability

Continuous Inkjet (CIJ) printing applies batch numbers, barcodes, or certification marks directly onto the moving profile. The printhead hovers above the surface, firing ink droplets at high speeds. The ink must dry instantly to prevent smearing on downstream guide rollers. Laser engraving offers a permanent alternative. It burns the code into the surface. Laser marking requires specific polymer additives to achieve high visual contrast, especially on dark-colored profiles.

Material-Specific Finishing Considerations

Calibration and Cooling Dynamics for Inline Finishing

Before any profile reaches a finishing station, it must pass through the calibration and cooling tanks. The efficiency of this zone dictates the success of all downstream operations. Vacuum sizing tanks pull the semi-molten polymer against the calibration tooling to establish the final dimensions. If the vacuum pressure fluctuates, the profile walls will warp. This warping creates massive problems for inline lamination or punching, as the profile will no longer sit flat against the nesting blocks.

Cooling water temperature and flow rate must be strictly controlled. If the water is too cold, it shocks the polymer, inducing internal stresses that release during inline cutting, causing the ends to flare or crack. If the water is too warm, the core of the profile remains soft. When the haul-off belts grip a soft profile, they crush the hollow chambers. A crushed profile cannot be properly embossed or routed. Operators must balance the cooling gradient to ensure the surface is rigid enough to withstand haul-off pressure while the core retains enough residual heat for processes like inline flaring or swaging.

PVC Profile Production Line Requirements

Integrating finishing equipment into a PVC profile production line demands careful attention to material state. Rigid PVC profiles require high-impact tooling. Standard steel punches will cause micro-cracking around the hole edges due to the material's notch sensitivity. You must use specialized punch geometries with shear angles and maintain optimal profile temperatures during the punching phase to prevent shattering. If the PVC cools too much before reaching the punch station, the scrap rate will skyrocket.

Flexible PVC behaves differently under tension. It requires tension-controlled haul-offs to prevent stretching during lamination or tape application. If the haul-off pulls too hard, the profile elongates. Once cut, the flexible PVC will shrink back to its original state over the next 24 hours, causing applied films to wrinkle or peel. Closed-loop tension control systems using dancer arms or load cells are essential for maintaining dimensional stability.

Thermal memory plays a massive role in PVC finishing. You must manage the cooling bath length meticulously. The PVC must exit the calibration table at the exact optimal temperature for foiling adhesives to bond. If the core remains too hot, the pressure from lamination rollers will warp the hollow chambers of the profile. If it is too cold, the adhesive will not wet out properly, leading to delamination in the field.

WPC Plastic Profile Production Line Challenges

Operating a WPC plastic profile production line introduces severe wear factors. Wood-plastic composites contain highly abrasive organic fibers, such as wood flour or rice husks. These fibers rapidly wear down standard steel cutting and punching tools. You must specify carbide or polycrystalline diamond (PCD) tipped tooling for all inline saws and routers to maintain acceptable maintenance intervals. Failing to upgrade tooling will result in ragged cuts and frequent line stoppages for blade changes.

Embossing dynamics change significantly with composites. A dedicated wood plastic profile machine requires precise temperature control at the embossing wheel. The composite surface must be hot enough to accept the deep wood grain imprint but stable enough not to tear. Applying too much pressure on a poorly cooled WPC profile causes the edges to mushroom and lose dimensional tolerance. The embossing station often requires its own localized heating and cooling zones to condition the surface just before the nip.

Dust extraction is another major challenge for WPC. Cutting and routing wood composites generates fine, abrasive dust rather than standard plastic chips. This dust easily infiltrates linear bearings, ball screws, and servo motors on traveling saws. Upgraded sealing on mechanical components, positive pressure electrical enclosures, and high-velocity vacuum systems are non-negotiable for WPC inline finishing.

Evaluating Customizable PVC Profile Machinery for Inline Integration

Selecting the right hardware determines the success of your inline strategy. You need customizable PVC profile machinery that communicates seamlessly with your existing extrusion setup. Look for specific features that directly translate to operational outcomes on the factory floor.

Servo-driven actuation represents a massive upgrade over traditional pneumatic systems. Pneumatic cylinders suffer from lag and variable force depending on shop air pressure fluctuations. Servo motors deliver exact, repeatable force and positioning. They allow for higher speeds and tighter tolerances during inline punching and cutting. This precision reduces scrap generated by misaligned holes or inconsistent cut lengths.

Closed-loop encoder feedback is the brain of inline synchronization. An encoder wheel rides directly on the moving plastic profile. It measures the actual linear speed of the material, not just the speed of the haul-off belts. It feeds this data to the traveling saws and punches via high-speed industrial networks like EtherCAT or Profinet. This closed-loop system eliminates dimensional drift caused by minor slippage in the haul-off cleats.

Scalability and modularity protect your equipment investment. Select machinery featuring bypass modes. This allows the profile to pass through the finishing station without engagement when running standard products. Modular base plates allow operators to physically roll finishing units in and out of the line using quick-disconnect power and air fittings. You can swap a punching unit for a lamination station between product runs in a matter of minutes.

Control system integration prevents catastrophic line failures. The finishing equipment's Programmable Logic Controller (PLC) must handshake with the primary extruder's control panel. This allows for centralized alarm management. If the inline router jams, the system must automatically ramp down the extruder speed or trigger a bypass chute. Isolated control systems lead to massive scrap piles during faults because the extruder continues pumping plastic into a jammed downstream unit.

Implementation Risks and Mitigation Strategies

Integrating complex mechanical systems inline carries inherent risks. Anticipating these failures allows you to engineer robust mitigation strategies before commissioning the line.

• Risk: Line Speed Bottlenecks. The finishing equipment cannot keep up with the extruder's maximum output. This forces you to slow down the entire line, destroying your return on investment.

  • Mitigation: Conduct rigorous cycle-time analysis prior to purchase. Calculate the exact milliseconds required for a punch or cut cycle. Utilize multi-head punching systems that punch several hole patterns simultaneously to reduce cycle frequency. For flexible profiles, install accumulator loops to buffer speed differences between the continuous extruder and intermittent finishing cycles.

• Risk: Scrap Multiplication. A jam in the inline router or punch causes the extruder to back up. Before the operator can react, hundreds of feet of scrap accumulate on the floor.

  • Mitigation: Implement automated bypass chutes directly before the finishing station. Use quick-release tooling for rapid jam clearance. Install predictive maintenance sensors on all downstream motors to detect torque spikes before a mechanical jam occurs. Tie these sensors into the main line stop circuit.

• Risk: Thermal Distortion. Applying pressure during inline lamination, embossing, or punching deforms the hollow chambers of the thin-walled profile.

  • Mitigation: Design custom internal mandrels that float inside the profile during extrusion to provide internal support. Utilize profile-specific nesting blocks in the finishing station. These blocks cradle the exact external geometry of the profile, supporting the walls during pressing, punching, or butt welding.

Conclusion

1. Audit your current secondary processing labor costs and scrap rates to establish a baseline for return on investment calculations.

2. Measure your existing line speeds and haul-off stability to determine if encoder feedback upgrades are necessary for your current equipment.

3. Consult with integrators of customizable extrusion machinery to run physical feasibility trials on your specific polymer blends and profile geometries.

4. Map out your factory floor space to ensure adequate room for modular finishing stations, bypass chutes, and safe operator access.

FAQ

Q: Can I retrofit inline finishing equipment onto an older plastic profile production line?

A: Yes, provided there is sufficient physical floor space between the haul-off and the cutoff saw. The older line must also be fitted with an encoder wheel. This encoder provides real-time speed data to the new finishing equipment, ensuring synchronization with the existing haul-off speed.

Q: Does inline embossing slow down a wood plastic profile machine?

A: Not necessarily. If the cooling and calibration tanks are sized correctly, the profile will reach the embossing wheel at the optimal temperature and speed. This maintains your standard throughput without bottlenecking the extruder, provided the embossing unit is driven by synchronized servo motors.

Q: How do traveling punches maintain accuracy on a moving plastic profile?

A: They use servo motors and encoder feedback to match the linear speed of the extrusion line exactly. The carriage accelerates to line speed, clamps onto the profile, performs the punch, releases, and rapidly returns to the home position, all without interrupting the continuous flow.

Q: What is the best way to cut a WPC plastic profile inline?

A: A traveling saw equipped with a carbide-tipped or polycrystalline diamond (PCD) blade is standard. WPC is highly abrasive and generates significant particulate. Robust, high-velocity dust extraction is mandatory to protect the saw's linear bearings and maintain cut quality over long production runs.

Q: Is it better to apply protective tape inline or offline?

A: Inline application is vastly superior. It protects the surface finish immediately after extrusion. This prevents scratches and handling damage during the cutoff, stacking, and packaging phases. It is especially critical for high-gloss, metallic, or laminated surfaces that are easily marred by manual handling.
