Which Materials Can a Plastic Profile Production Line Extrude?

The profitability and application range of any extrusion facility strictly depend on the material capabilities of its machinery. Procuring equipment without mapping material compatibility brings severe financial and operational risks. Operators face premature screw wear, thermal degradation of resins, and unacceptable profile tolerances when running mismatched polymers. The transformation process converts raw plastic pellets into precise, continuous shapes through applied heat and mechanical shear. This thermodynamic transformation varies wildly between polymer families. A setup designed for rigid polymers will fail when processing moisture-sensitive composites. This guide provides a technical framework for evaluating which polymers and composites a plastic profile production line can process. We detail the necessary machinery configurations required for each material class to ensure optimal throughput, dimensional stability, and long-term equipment reliability.

Key Takeaways

• Material Versatility Requires Specific Tooling: While a standard plastic profile production line can process multiple polymers, optimal throughput for specific materials (like rigid PVC vs. WPC) dictates distinct screw designs and barrel metallurgy.

• Composites Demand Specialized Handling: Extruding Wood-Plastic Composites (WPC) requires robust moisture extraction and high-torque drives to prevent material degradation and equipment stalling.

• Co-Extrusion Expands Capabilities: Modern lines support dual- and tri-durometer profiles, allowing manufacturers to combine rigid substrates with flexible seals in a single pass to dramatically enhance part functionality.

• Customization is Non-Negotiable for Scale: Off-the-shelf machinery often fails at edge-case formulations; investing in customizable PVC profile machinery ensures long-term adaptability to new additives, UV inhibitors, and impact modifiers.

Core Success Criteria: Matching Material Properties to Extrusion Machinery

Not all plastics melt, flow, or cool identically. Success relies on matching the machine's thermodynamic profile to the polymer's specific requirements. Extrusion forces solid resin through a heated barrel. The screw shears the material, generating friction and heat. This mechanical work melts the polymer. Different materials absorb and retain this heat differently. If the machine configuration ignores these thermal realities, the resulting plastic profile will suffer from sink marks, warping, or total structural failure. Plant managers must evaluate resin properties before specifying barrel zones, drive motors, or cooling capacities.

Melt Flow Index (MFI) and Shear Sensitivity

A material's viscosity under shear dictates the required motor torque and screw geometry. Melt Flow Index (MFI) measures how easily a polymer flows when melted. High-MFI materials flow rapidly and require less mechanical shear. Low-MFI materials resist flow. They demand aggressive screw designs and high-torque gearboxes to push the stiff melt through the die. Shear sensitivity complicates this further. Some polymers thin out rapidly under mechanical stress. Others degrade if subjected to excessive friction. Engineers must select screw profiles with the correct compression ratios to match the specific MFI of the target resin. A mismatch here leads to either unmelted particles in the final product or severe polymer degradation.

Thermal Stability

Temperature control represents a primary evaluation dimension. Heat-sensitive materials require precise cooling mechanisms to prevent burning or discoloration inside the barrel. Polymers like PVC possess narrow processing windows. If the melt temperature exceeds the degradation threshold, the material releases corrosive gases. Equipment handling these resins needs highly responsive closed-loop cooling systems. Zoned barrel heaters combined with internal screw cooling prevent localized overheating. Stable thermal management ensures the polymer exits the die at a uniform viscosity. Without this stability, the extrudate will surge, causing the profile dimensions to fluctuate wildly as it enters the downstream sizing equipment.

Standard Thermoplastics in Plastic Profile Extrusion

Polyvinyl Chloride (PVC): Rigid and Flexible Applications

PVC dominates the construction sector. Manufacturers use it extensively for window trimmings, commercial components, and pipes. The material offers exceptional chemical resistance and structural rigidity. However, PVC presents unique processing challenges. It exhibits extreme shear sensitivity and degrades rapidly at elevated temperatures. Operating a dedicated PVC profile production line requires specific hardware. Conical or parallel twin-screw extruders are mandatory. These machines provide positive material displacement at lower RPMs. This prevents the excessive shear heat that destroys PVC compounds. Additionally, the corrosive nature of degrading PVC necessitates bimetallic barrels and chrome-plated dies. When running rigid PVC (UPVC), operators must monitor the K-value of the resin. Higher K-values indicate higher molecular weight, requiring more robust gearboxes to handle the increased torque loads.

Polyolefins (PE and PP): High-Volume Utility Profiles

Polyethylene (PE) and Polypropylene (PP) serve high-volume utility applications. You find these materials in drinking straws, medical tubing, and weather stripping. Polyolefins boast high thermal stability. They flow easily and resist degradation during extrusion. Manufacturers typically run these materials on high-speed single-screw extruders. The screw designs feature longer metering zones to ensure a homogenous melt. Because PE and PP shrink significantly during cooling, downstream sizing equipment must utilize aggressive vacuum calibration. This maintains precise dimensional tolerances as the profile solidifies. Operators must balance the haul-off speed with the cooling tank temperature. Pulling the profile too fast before it fully cools results in stretching and wall thinning.

Polycarbonate (PC) and Acrylic (PMMA)

Applications requiring high optical clarity rely on Polycarbonate (PC) and Acrylic (PMMA). These materials dominate lighting diffusers and commercial retail displays. They offer excellent printability, UV resistance, and impact durability. Processing these amorphous polymers involves strict machinery trade-offs. The extrusion line requires highly polished tooling. Any surface imperfection on the die lip transfers directly to the finished profile, ruining the optical clarity. Precise cooling calibration is also critical. Uneven cooling creates severe internal stresses. This leads to warping or cracking after the product leaves the extrusion line. PC has a very high melt viscosity, requiring heavy-duty thrust bearings in the extruder to handle the backpressure generated at the die.

Styrene (PS), ABS, and Nylon

Engineering plastics like Styrene (PS), ABS, and Nylon provide high-impact resistance for commercial components. Structural profiles often utilize these robust materials. However, ABS and Nylon are highly hygroscopic. They absorb moisture directly from the ambient air. You must implement rigorous pre-drying protocols before these materials enter the extrusion barrel. Desiccant dryers must reduce moisture levels below specific thresholds, often requiring dew points of -40°C. Failure to dry the resin results in steam formation inside the barrel. This causes surface defects, splay, and structural voids in the final product. The extrusion line must integrate seamlessly with these upstream drying systems to prevent moisture reabsorption.

PET and PLA: Eco-Friendly and Precision Profiles

Polyethylene Terephthalate (PET) and Polylactic Acid (PLA) represent growing materials for sustainable packaging. Manufacturers use them for edge banding and precision retail extrusions. Both materials suffer from hydrolytic degradation if processed while wet. Moisture breaks down the polymer chains during extrusion. This drastically reduces the material's intrinsic viscosity and physical strength. Specialized desiccant drying systems are non-negotiable. The extrusion line must also feature precise melt temperature controls. PLA, in particular, has a narrow processing window and degrades quickly if overheated. Screw designs for PLA must minimize shear while providing enough mixing to melt the pellets uniformly.

Composite and Specialty Extrusion Materials

Wood-Plastic Composites (WPC)

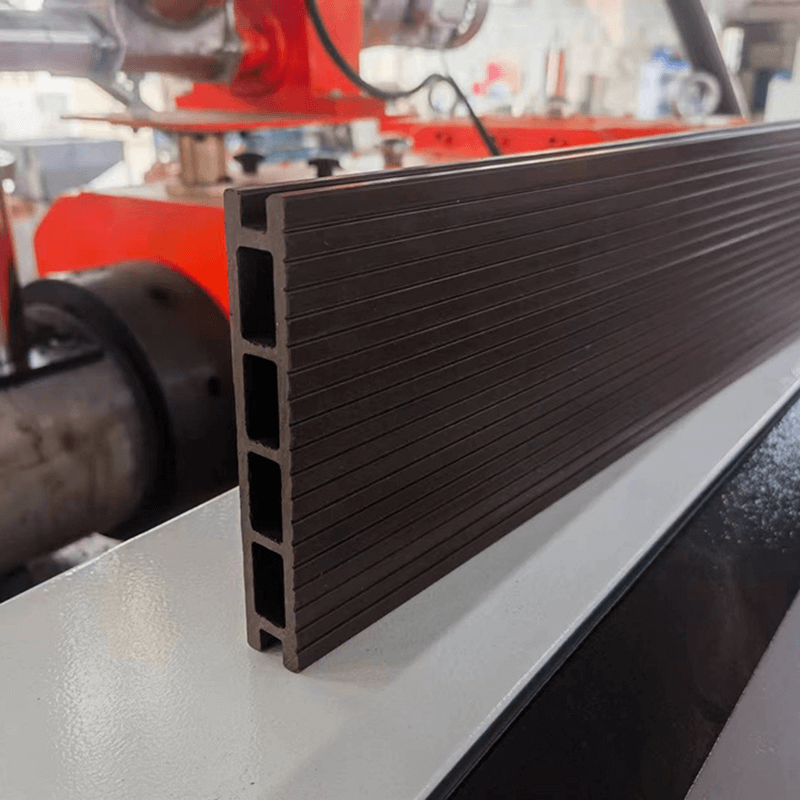

Wood-Plastic Composites (WPC) blend wood flour or fibers with PE, PP, or PVC matrices. This creates a durable material ideal for decking, fencing, and architectural cladding. WPC formulations present severe processing challenges. Wood fibers hold significant moisture and exhibit low bulk density. Operating a WPC plastic profile production line demands specialized equipment. The extruder must feature multi-stage venting zones connected to high-capacity vacuum pumps. This extracts steam and volatile gases before the material reaches the die. If moisture remains in the melt, it expands upon exiting the die, creating a porous, weak structure. Furthermore, wood fibers are highly abrasive. A purpose-built wood plastic profile machine utilizes hardened, wear-resistant screws and barrels to prevent rapid equipment degradation. Operators must also manage the coupling agents used to bond the hydrophilic wood with the hydrophobic plastic, ensuring the melt temperature activates these additives without burning the wood flour. The die design for WPC must account for the material's low melt strength, often requiring longer land lengths to stabilize the flow before it exits.

Co-Extrusion: Dual and Tri-Durometer Profiles

Co-extrusion involves processing different materials simultaneously through a single die. This enhances part functionality without secondary assembly. A common application combines a rigid PVC structural base with a flexible TPE weather seal. Evaluating co-extrusion capabilities involves analyzing die design complexity. The feedblock or multi-manifold die must merge distinct polymer melt streams seamlessly. Synchronized drive controls ensure both extruders deliver consistent volumetric output. Material adhesion compatibility across different polymer families remains the primary engineering hurdle. The melt temperatures and rheological properties of both materials must align to achieve a permanent mechanical bond. If the temperatures differ too much, the hotter material will degrade the cooler one at the interface layer.

Machinery Requirements for Specific Material Formulations

Screw Design and Barrel Configurations

The choice between single-screw and twin-screw extruders dictates your material capabilities. Single-screw extruders excel at processing stable thermoplastics like PE, PP, and PLA. They rely on friction against the barrel wall to melt the resin. The Length to Diameter (L/D) ratio determines the residence time of the polymer. Higher L/D ratios provide better mixing for colorants. Twin-screw extruders are mandatory for heat-sensitive PVC and heavily filled WPC. They utilize intermeshing flights to force material forward regardless of friction. This positive displacement allows for lower operating speeds and reduced shear heat. Conical twin-screws offer high compression at the feed throat, making them ideal for low-bulk-density powders.

Handling Additives, UV Inhibitors, and Impact Modifiers

Raw plastic pellets rarely enter the extruder alone. Manufacturers introduce color concentrates, foaming agents, and stabilizers to meet product specifications. These additives alter the melt behavior of the base resin. Calcium carbonate fillers increase thermal conductivity but reduce melt strength. Foaming agents require precise pressure management inside the die to control cell expansion. If the pressure drops too early, the foam collapses. Gravimetric dosing systems are essential. They ensure precise additive ratios by weighing materials continuously. This maintains structural integrity and guarantees color consistency across long production runs. Volumetric feeders often fail when handling regrind or materials with varying bulk densities.

The Role of Customizable PVC Profile Machinery

Customization acts as a scalable value factor in extrusion operations. Off-the-shelf machinery often fails when processing edge-case formulations or highly filled composites. Investing in customizable PVC profile machinery allows manufacturers to adapt. Modular barrel sections permit engineers to adjust the L/D ratio based on the material. Interchangeable dies facilitate rapid product changeovers. Adaptive cooling tanks with adjustable vacuum zones accommodate different shrinkage rates. This flexibility lets you pivot between different material formulations without purchasing entirely new extrusion lines. You can swap a standard calibration sleeve for a specialized vacuum block when moving from a solid profile to a complex hollow geometry.

Downstream Sizing and Haul-Off Calibration

The extrusion process does not end at the die lip. As the polymer exits the extruder, it experiences die swell. The material expands as it escapes the high-pressure environment of the barrel. Downstream sizing equipment must immediately capture and cool the profile to lock in its final dimensions. Vacuum calibration tables utilize water sprays and negative pressure to hold the semi-molten plastic against sizing sleeves. The length of this cooling tank depends entirely on the material's thermal mass and the line speed. Thick-walled PVC profiles require extended cooling zones to prevent the core heat from remelting the outer skin. Following the cooling tank, the haul-off unit pulls the profile at a constant velocity. Caterpillar tracks with specialized rubber pads grip the material without crushing it. The speed of the haul-off must synchronize perfectly with the extruder output. Any variation in pulling speed causes the profile to stretch or bunch up, instantly ruining the dimensional tolerances. Finally, automated flying saws or guillotine cutters slice the continuous profile into specified lengths without interrupting the line speed.

Implementation Risks and Material-Specific Trade-Offs

Thermal Degradation and Tooling Wear

Running abrasive materials through standard tooling guarantees rapid equipment failure. Glass-filled polymers and WPC compounds act like sandpaper against internal steel surfaces. This degrades the screw flight and the die lands. As clearance between the screw and barrel increases, extrusion pressure drops. Output becomes erratic, and melt temperatures spike due to material backflow. You must specify bimetallic barrels for high-wear applications. Tungsten-carbide coated screws provide the necessary Rockwell hardness to withstand abrasive fillers. Upfront investment in wear-resistant metallurgy prevents catastrophic downtime later. Inspect screw wear annually to maintain baseline production metrics.

Environmental and Seasonal Variables

Extrusion does not happen in a vacuum. Seasonal temperature changes and ambient humidity drastically affect the process. High summer humidity increases the moisture load on hygroscopic resins. This forces dryers to work harder and extends drying times. Fluctuating ambient temperatures alter the efficiency of downstream cooling tanks. If the chilled water temperature rises, the profile may exit the tank too hot, leading to deformation on the haul-off tracks. Implement closed-loop water cooling systems with dedicated chillers to maintain consistent thermal extraction. Automated thermal feedback controls and climate-controlled resin storage mitigate environmental variables entirely, ensuring winter and summer production runs yield identical tolerances.

Material Changeover Inefficiencies

Switching between incompatible materials introduces significant operational downtime. Transitioning from a high-temperature polymer like PC to a low-temperature resin like PVC is dangerous. If you introduce PVC into a barrel still heated for PC, the PVC will instantly burn, degrade, and release hazardous gases. You must purge the barrel completely. Follow a strict mechanical procedure to prevent equipment damage:

1. Run the hopper dry and extrude all remaining base resin from the barrel.

2. Introduce a high-viscosity commercial purging compound designed for the specific temperature range.

3. Gradually lower the barrel zone temperatures while the purge compound pushes out the residual polymer.

4. Remove the die head and clean the breaker plate while the metal is still hot.

5. Introduce the new resin only after the barrel temperatures have stabilized at the new setpoints.

Standardize your production schedules to group similar materials together. For highly sensitive or incompatible resins, utilizing dedicated extrusion lines remains the most efficient strategy.

Conclusion

A production line is only as capable as its thermodynamic controls, screw geometry, and tooling allow. Material versatility must be engineered into the line from the start. You cannot force a heat-sensitive composite through a high-shear single-screw machine and expect tight tolerances. Audit your current and projected material requirements carefully. If your five-year plan includes expanding from standard PVC into heavily filled WPC, a twin-screw configuration is mandatory. Take immediate action to align your machinery with your material strategy.

• Audit your current and five-year projected material requirements before finalizing any machinery specifications.

• Initiate a material trial with the machinery manufacturer using your exact resin formulations and additive profiles.

• Specify wear-resistant bimetallic barrels if your production schedule includes abrasive composites or glass-filled polymers.

• Implement gravimetric dosing systems to eliminate manual mixing errors and ensure consistent additive ratios.

FAQ

Q: Can a single plastic profile production line extrude both PVC and WPC?

A: Yes, but it requires specific twin-screw configurations, interchangeable dies, and robust moisture venting. A dedicated WPC line is often more efficient for high-volume composite runs because it handles the abrasive nature of wood fibers better and provides the necessary torque for low-MFI blends.

Q: What is the best material for outdoor, UV-resistant plastic profiles?

A: Polycarbonate (PC), Acrylic (PMMA), or specially formulated rigid PVC work best. For PVC, you must include high concentrations of UV inhibitors and titanium dioxide to prevent chalking and yellowing under prolonged sun exposure.

Q: Why do I need a twin-screw extruder for PVC profiles?

A: PVC is highly shear-sensitive and prone to thermal degradation. Twin-screw extruders provide the necessary mixing and positive displacement at lower RPMs and temperatures. This prevents the excessive shear heat that would otherwise burn the PVC and release corrosive gases.

Q: How do additives and colorants affect the extrusion process?

A: Additives, impact modifiers, and color concentrates alter the melt flow index and cooling requirements. Heavy fillers like calcium carbonate increase thermal conductivity but reduce melt strength. Precision gravimetric dosing systems are required to prevent variations in profile dimensions.

Q: Can customizable PVC profile machinery handle co-extrusion?

A: Yes, customizable lines can be retrofitted or designed with secondary extruders. These co-extruders feed into a single complex die to create multi-durometer profiles. This allows you to combine a rigid structural base with a flexible weather seal in one continuous pass.
