Which PVC Compounds Suit Window and Door Profile Production?

Selecting the right PVC compound dictates the long-term structural viability of window and door systems. Harsh environmental conditions demand precise material formulations to prevent premature failure. Manufacturers face a constant challenge on the production floor. You must balance material costs, extrusion stability, and strict regulatory performance standards like AAMA. Doing this without compromising yield rates requires deep technical alignment. We must bridge the gap between material science and machine capability. You need to align specific uPVC formulations and additive packages with your extrusion machinery. This alignment ensures consistent, defect-free production from initial sample prototyping to full-scale manufacturing. We will break down the exact additive ratios, machinery configurations, and testing protocols required to produce high-performance fenestration products that survive decades of outdoor exposure.

• Material Dominance: Rigid uPVC remains the industry standard for structural frames due to its superior thermal insulation and dimensional stability.
• Formulation Specificity: Window and door profiles require significantly more impact modifiers (typically 8-12 phr CPE) than standard pipe-grade PVC to achieve cold-weather impact resistance and UV stability.
• Sourcing Strategy: Manufacturers must weigh the consistency of pre-formulated, weather-resistant compounds against the cost-savings of in-house dry blending.
• Machinery Alignment: High-yield production depends on matching the compound’s melt rheology with the specific screw design and cooling capacities of the PVC profile production line.
• Compliance & Testing: Formulations must be evaluated against industry-standard weathering and impact metrics (e.g., AAMA standards) prior to full-scale production.

Defining Success Criteria for Window and Door PVC Profiles

Weatherability and UV Resistance

Exterior compounds must withstand prolonged UV exposure without degrading. They cannot chalk, embrittle, or discolor over time. Sunlight breaks down polymer chains through photo-oxidation if left unprotected. This degradation ruins the aesthetic and structural integrity of the frame. You must formulate exterior blends differently than interior materials. Interior products like cable trunking or conduits face lower baseline needs. They rarely see direct sunlight or extreme temperature swings. We evaluate exterior formulations through strict industry lenses. The American Architectural Manufacturers Association (AAMA) sets rigorous weathering standards. Passing tests like AAMA 303 proves the material can survive decades outdoors. Formulations undergo accelerated weathering in QUV chambers to simulate years of sun exposure in weeks. Technicians monitor color shift (Delta E) to ensure the profile retains its original appearance.

Impact Resistance and Structural Integrity

High impact strength is non-negotiable for fenestration products. Cold-weather climates pose a severe threat to standard plastics. Standard PVC becomes brittle when temperatures drop below freezing. A brittle frame shatters under sudden impacts or heavy wind loads. You need specialized formulations to maintain flexibility in the cold. Load-bearing window and door frames require high baseline mechanical properties. They support heavy glass panes and resist building settlement stresses. The compound dictates how well the frame absorbs these dynamic forces. Drop-weight impact testing determines the ductile-to-brittle transition temperature of the extruded profile. A passing grade ensures the frame survives transport, installation, and decades of harsh winters. We test these profiles by dropping specific weights from set heights at -10°C to verify they will not crack under stress.

Thermal Insulation and Dimensional Stability

The compound plays a massive role in maintaining shape. Thermal cycling causes constant expansion and contraction. A poorly formulated PVC profile warps under these conditions. Warping breaks the weather seal and ruins energy efficiency. Dimensional stability ensures the frame stays true year after year. Formulation directly impacts the overall U-factor of the final product. Better thermal resistance in the frame lowers heating and cooling costs. Energy efficiency drives consumer demand in the modern fenestration market. Multi-chamber profile designs rely heavily on the stiffness of the compound to maintain the integrity of internal air pockets. If the internal walls warp, the insulation value drops significantly. You must ensure the coefficient of linear thermal expansion remains low enough to prevent bowing in dark-colored frames exposed to direct sunlight.

Core PVC Compound Categories for Profile Extrusion

Unplasticized PVC (uPVC) / Rigid PVC

Unplasticized PVC omits plasticizers entirely. This absence makes it the mandatory choice for rigid window and door frames. Plasticizers add flexibility but sacrifice structural strength and weatherability. Window-grade uPVC differs heavily from standard pipe-grade uPVC. The base resin might look similar on paper. However, profile extrusion demands a highly specialized, impact-modified formulation. Pipe grades prioritize hydrostatic burst strength. Window grades prioritize UV resistance and cold-weather impact. You must select the correct baseline resin metrics. A K-value between 65 and 68 is optimal for rigid profile extrusion. This range balances melt viscosity with the physical properties required for complex hollow geometries. Resins with higher K-values offer better mechanical properties but require higher processing temperatures, which increases the risk of thermal degradation in the barrel.

Semi-Rigid and Flexible Compounds

Modern windows require more than just rigid frames. They need co-extruded gaskets, weatherstripping, and seals. We use plasticized or semi-rigid PVC formulations for these components. These materials compress to form airtight and watertight barriers against the elements. Feeding these materials requires specialized equipment. You need a dedicated PVC sealing strip production line for optimal results. Flexible compounds have drastically different melt behaviors than rigid uPVC. They require different screw geometries and cooling techniques. Co-extruding these flexible lips directly onto the rigid frame saves downstream assembly time and creates a permanent, watertight bond. The flexible compound must adhere perfectly to the rigid substrate while maintaining its compression set properties over thousands of opening and closing cycles.

Pre-Formulated Weatherable Compounds vs. In-House Dry Blending

Purchasing proprietary, ready-to-extrude weatherable compounds offers clear operational benefits. These pre-mixed blends guarantee AAMA compliance out-of-the-box. They reduce your formulation risks and speed up time-to-market. You avoid the complex chemistry of balancing additives. Compare this against mixing raw PVC resin and additives in-house. Dry blending requires significant capital expenditure. You need high-speed heating mixers, cooling silos, and precise dosing equipment. It also demands strict quality control protocols. A minor weighing error ruins an entire production batch and causes massive scrap rates at the extruder.

To successfully blend in-house, you must follow strict mixing sequences:

1. Load the PVC resin into the hot mixer and heat to 60°C to open the resin pores.
2. Add heat stabilizers to coat the resin particles and prevent early degradation.
3. Introduce impact modifiers and processing aids at 80°C for thorough dispersion.
4. Add fillers like calcium carbonate last, typically around 100°C, to prevent excessive wear on the mixer blades.
5. Discharge the batch into the cooling mixer at 120°C and cool to 40°C before storage.

Critical Additives in PVC Profile Formulations

Impact Modifiers: CPE vs. MBS

Impact modifiers prevent cold-weather shattering by absorbing and dissipating energy. Chlorinated Polyethylene (CPE) and Methacrylate-Butadiene-Styrene (MBS) are the primary choices. CPE dominates exterior applications. We generally prefer 8-12 phr of CPE for window frames. It offers superior weatherability and retains impact strength outdoors. CPE forms a network within the PVC matrix that stops crack propagation. MBS provides excellent impact resistance but struggles with UV exposure. MBS degrades and yellows quickly in direct sunlight due to its butadiene content. Save MBS for interior applications where UV light is absent. When using CPE, you must monitor the chlorine content, as variations will drastically alter the fusion time and melt viscosity during extrusion.

Heat Stabilizers and UV Protectants

PVC degrades rapidly at extrusion temperatures without stabilizers. The industry has shifted away from lead-based stabilizers. Environmental compliance drives the move to calcium-zinc (Ca-Zn) or tin-based stabilizers. These modern alternatives provide excellent thermal stability during extrusion. They keep the polymer chains intact under high heat and shear. UV protectants are equally important for longevity. Titanium Dioxide (TiO2) acts as a physical shield against UV rays. It prevents UV degradation and maintains color fastness. High-quality rutile TiO2 reflects sunlight and keeps the frame cool. Anatase TiO2 is cheaper but promotes chalking, making it unsuitable for exterior profiles. You should aim for 7 to 9 phr of rutile TiO2 to guarantee long-term color stability in harsh climates.

Fillers and Lubricants: Balancing Cost and Extrusion Flow

Calcium Carbonate (CaCO3) serves as the primary filler. It reduces overall material costs and increases frame rigidity. However, excessive filler makes the profile brittle and hard to process. You must balance filler content with impact modifiers. Lubricants control how the melt behaves inside the barrel and die. Internal lubricants reduce friction between polymer chains, lowering melt viscosity. External lubricants prevent the melt from sticking to the hot metal surfaces of the die. You must balance these two perfectly. A poor balance causes melt fracture, surging, and ruins the surface finish.

Aligning Compounds with Your Plastic Profile Production Line

Extruder Compatibility and Screw Design

The bulk density and flow characteristics of your dry blend dictate machine design. You must choose the right twin-screw extruder configuration. Conical twin-screws handle high-filler recipes well. They provide excellent compression and melt homogeneity. Parallel twin-screws offer high output rates for stable formulations. Your plastic profile production line must match the material behavior. Shear rates must be managed carefully. Excessive shear burns the material inside the barrel. Insufficient shear leaves un-melted particles in the final product. Screw geometry dictates this shear profile. Flight depth and pitch must align with the specific viscosity of your uPVC compound. If you switch from a low-filler to a high-filler formulation, you will likely need to change the screw profile to maintain adequate pumping efficiency and prevent material stagnation.

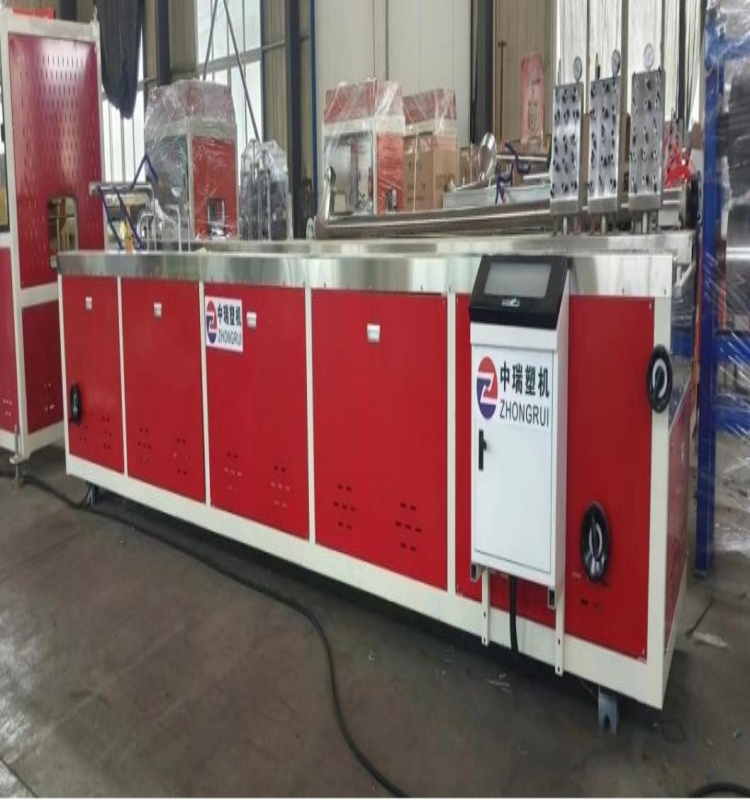

Calibration and Cooling Requirements

Different compound formulations exhibit varying shrinkage rates. High-filler blends shrink less than neat resin blends. This shrinkage dictates the setup of your calibration table. You must size the vacuum slots and cooling channels correctly. A standard PVC profile extrusion line relies on intense water cooling to freeze the profile shape. The length of the calibration table depends on line speed and wall thickness. Heavy commercial frames require extended cooling zones to prevent post-extrusion warping. Improper cooling introduces internal stresses. These stresses cause the frame to bow or twist once it reaches the job site. You must monitor the water temperature in the calibration tanks closely. Keeping the water between 14°C and 18°C ensures rapid heat transfer without shocking the polymer and inducing stress fractures.

Adapting to Customizable PVC Profile Machinery

Modern manufacturing demands flexibility. Utilizing customizable PVC profile machinery offers a distinct advantage. It allows for rapid die changes and efficient sample production runs. You can prototype new frame designs before committing to high-volume manufacturing. Co-extrusion capabilities add massive value. You can extrude a rigid uPVC frame with a flexible PVC lip simultaneously. This eliminates downstream assembly steps and improves seal integrity. Modular calibration tables allow operators to swap tooling quickly between different profile geometries. This adaptability keeps machine uptime high even with a diverse product catalog. Operators can adjust vacuum levels independently across different sections of the dry calibrator to fine-tune the wall thickness on the fly.

Production Trade-Offs and Cost-to-Value Analysis

Formulation Costs vs. Long-Term Durability

Every formulation decision involves a cost trade-off. Premium additives like high-grade TiO2 and advanced impact modifiers increase upfront costs. You must weigh this against the financial risk of field failures. A cheap formulation might save pennies per foot during extrusion. However, premature yellowing or cracking leads to massive warranty claims. These claims destroy brand reputation and erase any initial savings. Build a decision framework based on total lifecycle value. Investing in a robust compound ensures compliance with building codes and keeps customers satisfied for decades. Do not sacrifice long-term durability for short-term material savings. Testing a cheaper formulation requires extensive field trials before you can safely roll it out to your entire customer base.

Processing Speeds vs. Surface Finish

Operators constantly push for higher output rates. Maximizing line speed on a PVC profile production line increases daily revenue. But speed comes with physical limits. Pushing material too fast degrades the surface finish. It causes die build-up, known as plate-out. Plate-out leaves drag lines and dull spots on the profile. You must find the optimal speed where output peaks without sacrificing a flawless, high-gloss surface. Excessive speed also reduces residence time in the cooling tank. This leads to incomplete core cooling and subsequent dimensional instability. Balance line speed with the cooling capacity of your specific equipment. If you want to run faster, you must invest in longer calibration tables and higher-capacity water chillers to handle the increased heat load.

Implementation Risks and Mitigation Strategies

Managing Melt Fracture and Surface Defects

Surface roughness ruins the aesthetic appeal of a window frame. Improper lubricant balance often causes this defect. Incorrect melt temperatures also trigger surface tearing. You must identify the root causes quickly. Implement rheological testing to understand material flow behavior before running a full batch. Use precise temperature zone control across the barrel and die. Adjusting the die head temperature by just a few degrees often resolves minor surface defects. Ensure your external lubricants are not migrating too quickly to the surface, which causes slippage and uneven extrusion rates.

Follow these troubleshooting steps if surface defects appear:

• Check the melt temperature with a handheld pyrometer to ensure it matches the setpoint.
• Reduce the extruder screw speed by 5% to lower shear heating.
• Inspect the die lips for any burnt material or plate-out build-up.
• Verify the vacuum levels in the first calibration block are pulling the material flush against the metal.

Preventing Discoloration and Degradation During Extrusion

Polymer degradation remains a constant threat. Excessive residence time inside the barrel burns the PVC. Insufficient heat stabilization yields the same burnt result. Discolored streaks in the profile indicate active degradation. You must establish strict purging and shutdown protocols. Clear the barrel entirely before shutting off the heaters. Leaving stagnant material inside hot tooling guarantees degradation and requires a massive teardown to clean. Monitor the torque load on the extruder motor. Sudden spikes in torque often indicate that the material is cross-linking and degrading inside the barrel. Use a dedicated purging compound during color changes or weekend shutdowns to push out all residual uPVC and protect the metal surfaces.

Tooling Wear and Maintenance

Highly filled compounds accelerate wear on metal components. High CaCO3 content acts like sandpaper inside the machine. It erodes extruder screws, barrels, and extrusion dies over time. Worn screws lose pumping efficiency and cause surging. You must implement aggressive maintenance schedules. Measure screw and barrel wear during every major shutdown. We recommend using bimetallic screws for abrasive formulations. Their hardened surfaces resist wear and extend the lifespan of your core equipment. Polish the internal surfaces of your extrusion dies regularly to prevent material hang-up and ensure smooth flow. Keep a detailed log of die maintenance to track which profiles cause the most wear and adjust your formulations accordingly.

Conclusion

• Verify regional climate demands before finalizing your uPVC formulation to ensure adequate impact and UV resistance.
• Conduct pilot runs with material suppliers to test rheology against your current screw geometry.
• Perform accelerated weathering tests on all new compound blends to guarantee AAMA compliance.
• Consult equipment manufacturers to optimize calibration and cooling setups for your specific recipe.
• Establish strict maintenance schedules to monitor tooling wear caused by highly filled compounds.

FAQ

Q: What is the difference between standard PVC and uPVC for window profiles?

A: Standard PVC contains plasticizers for flexibility, making it unsuitable for structural applications. Unplasticized PVC (uPVC) lacks these plasticizers. This makes it rigid, highly durable, and capable of maintaining structural integrity under thermal stress and heavy wind loads.

Q: How does window-grade uPVC differ from pipe-grade uPVC?

A: Both utilize rigid uPVC, but window and door profiles require significantly higher doses of impact modifiers and UV protectants. Window grades need these additives to withstand cold-weather impacts, structural loads, and decades of direct sunlight without degrading.

Q: How much impact modifier is required for cold-weather PVC profiles?

A: Formulations typically require 8 to 12 phr (parts per hundred resin) of impact modifiers like Chlorinated Polyethylene (CPE). This dosage prevents embrittlement and cracking when temperatures drop below freezing, ensuring the frame absorbs sudden impacts.

Q: What standards must exterior PVC window profiles meet?

A: Exterior profiles must meet industry benchmarks such as AAMA (American Architectural Manufacturers Association) standards. These standards dictate strict minimum performance metrics for weathering, impact resistance, color retention, and dimensional stability over time.

Q: Can the same plastic profile production line extrude both rigid frames and flexible seals?

A: Co-extrusion lines can process both simultaneously using two separate extruders feeding a single die. However, dedicated lines for flexible seals require completely different screw designs, temperature profiles, and cooling setups than rigid frame lines.

Q: Why is titanium dioxide (TiO2) critical in window profile formulations?

A: Titanium dioxide acts as a physical shield against ultraviolet radiation. High-quality rutile TiO2 reflects sunlight, keeps the frame cool, and prevents the polymer chains from breaking down, which stops yellowing and chalking over time.
