Which PVC Profile Line Setup Fits Windows, Doors, and Cable Trunking?

Mismatching extrusion machinery to specific profile geometries results in excessive energy consumption, high scrap rates, and compromised dimensional stability. Running heavy UPVC window frames on lines optimized for thin-wall trunking simply does not work. Manufacturers must select equipment that balances output capacity, tooling flexibility, and energy efficiency. Often, they do this without standardized benchmarks for cross-application performance. We will break down how to evaluate, specify, and configure the correct extrusion setup based on exact end-product requirements, material formulations, production scale, and required industry certifications. You need to match the extruder torque, screw geometry, and downstream cooling capacity to the exact polymer blend you plan to run. This guide provides the technical framework to specify the right machinery for your factory floor.

• Extruder Selection is Material-Dependent: Conical twin-screw extruders are mandatory for rigid PVC powder formulations (windows/doors), while single-screw setups suit flexible PVC pellets (sealing strips).

• Downstream Configuration Dictates Quality: The length and capacity of vacuum calibration tables directly determine the dimensional tolerances and thermal insulation properties of complex, multi-chamber hollow profiles.

• Tooling Flexibility Drives ROI: Facilities producing a diverse mix of products—from cable trunking and skirting to ceiling panels and edge banding—require customizable PVC profile machinery with quick-change die systems to minimize changeover downtime.

• Long-Term Operational Value Extends Beyond the Purchase Price: Energy-efficient motors, bimetallic screw coatings for high-filler formulations, automated PLC controls, and CE/ISO certified safety standards significantly reduce long-term operational costs and compliance risks.

Defining Success Criteria for Your PVC Profile Extrusion Line

Material Formulations and Extruder Compatibility

Processing rigid UPVC powder differs fundamentally from extruding flexible PVC pellets. Rigid formulations rely on PVC resin (typically K-65 to K-68 grades) mixed with stabilizers, impact modifiers, and lubricants. This dry blend requires low-shear, positive displacement melting to prevent material degradation. Conical twin-screw extruders handle this process effectively. They compress the powder gradually, ensuring a homogeneous melt before the material reaches the die head without generating excessive shear heat. Flexible PVC uses higher K-value resins pre-compounded with plasticizers. These pellets flow easily. A standard single-screw extruder provides the necessary friction and residence time to process flexible materials efficiently.

Calcium carbonate (CaCO3) fillers heavily influence machinery selection. Manufacturers add chalk to increase profile rigidity. Window profiles might use 10 parts per hundred resin (phr), while skirting boards can exceed 40 phr. High filler loads increase melt viscosity and demand higher motor torque. Abrasive fillers also act like sandpaper against the screw flights and barrel walls. When specifying a PVC profile production line for high-filler formulations, you must upgrade to bimetallic screw coatings. Standard nitrided steel degrades rapidly under these conditions, leading to material backflow, inconsistent output, and frequent component replacement.

Output Capacity vs. Profile Complexity

Extrusion speed is strictly constrained by cooling capacity. You cannot push material through the die faster than the downstream equipment can freeze and stabilize it. Simple, flat profiles like skirting boards cool quickly. They allow for high line speeds and maximum extruder output. Complex, multi-chamber hollow profiles behave differently. Internal webs retain heat long after the outer skin solidifies. If you run a heavy window frame too fast, the internal walls will sag, ruining the structural integrity and preventing the insertion of steel reinforcements.

Dimensional tolerances dictate your production parameters. Interlocking profiles require absolute precision. Window frames must snap together with glazing beads and weather stripping perfectly. Even a half-millimeter of deviation causes assembly failures and drafts. Standalone profiles tolerate wider margins. A cable trunking cover needs to snap onto its base, but it does not require the airtight tolerances of a primary building envelope component. You must align your output expectations with the physical limits of cooling and calibration.

End-Product Performance Requirements

Machinery precision directly impacts structural strength and thermal insulation. Building codes mandate specific U-values for windows and doors. These insulation values depend entirely on the integrity of the internal chambers within the PVC profile. If the extruder surges or the haul-off unit pulls unevenly, wall thicknesses will fluctuate. Thin walls compromise the thermal break and weaken the frame, causing it to fail wind load and impact resistance tests.

Consistent melt temperature and pressure guarantee uniform material density. Variations in density lead to internal stresses. When exposed to sunlight and temperature fluctuations, stressed profiles warp, bow, and crack. Investing in precise PID temperature controls and servo-driven downstream equipment ensures the final product meets stringent residential and commercial building standards.

Setup Configurations by Application Type

UPVC Window and Door Profiles

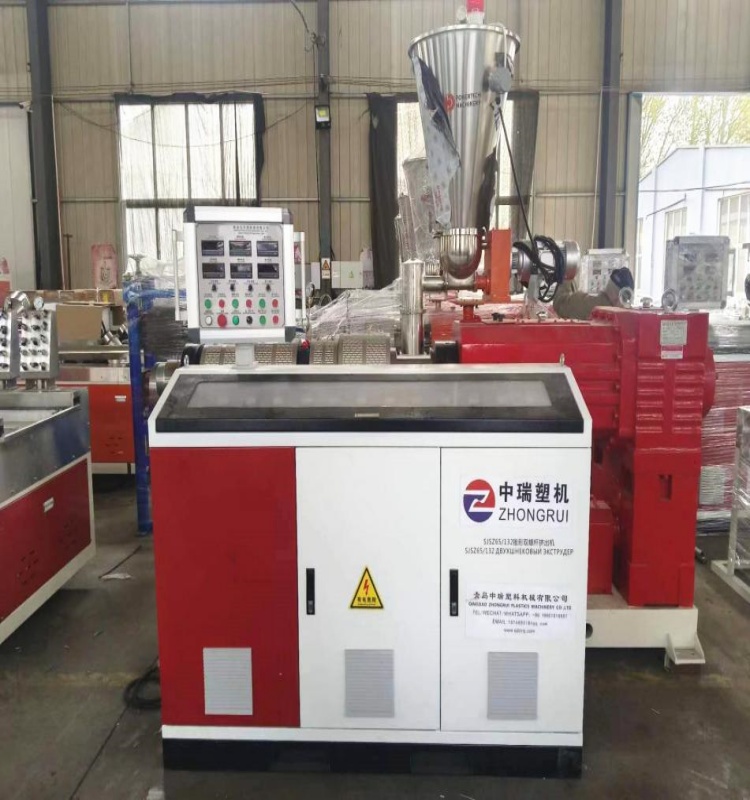

Manufacturing structural window and door frames demands heavy-duty equipment. You must use conical twin-screw extruders to achieve high-pressure, low-shear processing of rigid PVC powder. These machines provide the torque necessary to push dense, high-volume material through complex die heads without causing thermal degradation. The die head itself must feature perfectly balanced flow channels to ensure the plastic exits at a uniform velocity across the entire cross-section.

The vacuum calibration table is the most critical downstream component. Multi-chamber, thick-walled hollow profiles require extensive cooling to ensure optimal thermal breaks. A standard 4-meter table will fail. You need 6 to 8 meters of vacuum calibration, equipped with multiple independent vacuum and water zones. The first two meters utilize dry vacuum blocks to freeze the outer dimensions, while the remaining length uses water vortex tanks to extract heat from the internal webs.

Handling heavy profiles requires specialized pulling and cutting equipment. Heavy-duty caterpillar haul-off units use long, contoured rubber pads to grip the profile securely. This prevents crushing the hollow chambers while maintaining consistent tension. Precise cutting saws equipped with dust collection systems ensure clean, square cuts ready for corner welding.

PVC Cable Trunking and Skirting

Electrical trunking and decorative skirting prioritize speed and volume. You optimize the plastic profile production line for high-speed, thinner-wall extrusion. Because these profiles lack complex internal chambers, they cool rapidly. You can utilize shorter 4-meter calibration tables and run the extruder at higher RPMs.

Continuous production requires integrated finishing equipment. Inline punching mechanisms create mounting holes along the trunking base at high speeds. High-speed guillotine cutters slice the thin-walled profiles without generating dust or requiring the line to slow down, maximizing overall throughput. Saws are generally avoided here because they create static-charged dust that clings to the trunking.

Specialized Applications: PVC Sealing Strip Production Line

Weather stripping and gaskets require entirely different machinery. A PVC sealing strip production line utilizes single-screw extruders optimized for soft, flexible PVC pellets. These screws feature higher L/D ratios (typically 28:1 or 32:1) to ensure complete melting and mixing of the plasticized material.

Flexible profiles do not use vacuum calibration blocks. Pulling soft rubber through a tight metal block causes excessive friction and stretching. Instead, the profile extrudes directly into a cooling water bath. The water rapidly stabilizes the shape without applying mechanical stress. Roller haul-offs gently pull the strip through the bath and into a coiler.

Advanced weather-stripping relies on co-extrusion. Combining a rigid PVC spine with a flexible PVC lip creates a gasket that easily inserts into a window frame groove while providing an airtight seal against the glass. This requires two extruders feeding into a single, specialized feedblock and die head.

Expanding Versatility: Panels, Edge Banding, and WPC

A robust extrusion setup offers significant adaptability. You can transition from hollow frames to wide, flat geometries like ceiling panels, wall cladding, and edge banding. This requires swapping the die head and adjusting the downstream calibration to accommodate wider, flatter cooling blocks.

Transitioning to Wood Plastic Composite (WPC) decking or heavy-duty fencing requires mechanical upgrades. WPC formulations contain high volumes of wood flour, which holds moisture and creates immense backpressure. You must evaluate specific screw geometries designed for wood composites, featuring deep venting zones to extract steam. Upgrading motor torque and reinforcing the gearbox thrust bearings are mandatory steps to handle the physical demands of WPC extrusion without destroying the machinery.

Technical Evaluation Dimensions for Extrusion Machinery

Screw and Barrel Design

The Length-to-Diameter (L/D) ratio directly impacts melt homogeneity and output stability. Single-screw extruders processing flexible PVC typically use L/D ratios of 28:1 or 32:1. This length provides sufficient residence time to melt the pellets and build pressure. Conical twin-screws operate differently. Their tapering design compresses the powder mechanically, requiring shorter overall lengths but highly specific flight geometries to prevent over-shearing the rigid polymer.

Abrasive wear destroys extrusion equipment. Formulations containing high levels of calcium carbonate or titanium dioxide act like sandpaper inside the barrel. Standard nitrided steel surfaces wear down quickly, increasing the clearance between the screw and barrel. This causes material backflow, reducing output and increasing melt temperature. Bimetallic coatings—alloys containing tungsten carbide applied to the screw flights and barrel interior—are non-negotiable for high-filler processing. They extend the lifespan of the plasticizing unit exponentially.

Downstream Equipment and Automation

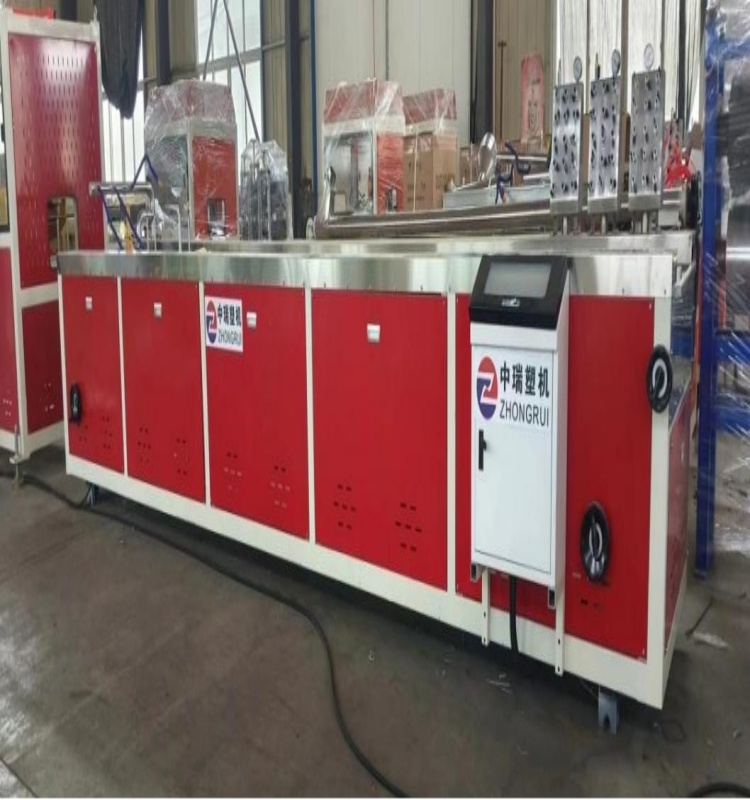

Calibration table lengths and vacuum pump capacities must match the profile weight per meter. Heavy profiles carry more residual heat and require aggressive cooling.

• Light profiles (under 0.5 kg/m): 4-meter calibration table, standard 3 kW water ring vacuum pumps.

• Medium profiles (0.5 - 1.5 kg/m): 6-meter table, upgraded water circulation with heat exchanger connections.

• Heavy profiles (over 1.5 kg/m): 8-meter table, multiple 5.5 kW high-capacity vacuum pumps, independent temperature zones.

Haul-off machines control the line speed. Standard AC motor drives often exhibit slight speed variations. These micro-surges cause the profile wall thickness to fluctuate. Servo-driven haul-off machines provide precise tension control, locking the pulling speed to the extruder output. This synchronization eliminates dimensional variations.

Energy Efficiency, Control Systems, and Compliance

Modern extrusion relies on centralized PLC control systems. Platforms from Siemens or Beckhoff allow operators to monitor melt pressure, temperature zones, and line speed from a single interface. Recipe management features let you save specific parameters for different profiles, ensuring repeatable quality across production runs. Data logging capabilities help trace defects back to specific machine fluctuations.

Variable Frequency Drives (VFDs) generate massive energy savings. Running main extruder motors and large vacuum pumps at full capacity constantly wastes power. VFDs adjust the motor speed to match the exact load required. This reduces electricity consumption and decreases mechanical wear on the drive components.

Equipment compliance protects your workforce and your business. Verify that all machinery meets international safety and manufacturing certifications, such as CE and ISO. These standards ensure proper guarding around moving parts, safe electrical enclosures, and reliable emergency stop mechanisms.

Scalability and Customizable PVC Profile Machinery

Modular Tooling and Quick-Change Systems

Operational downtime kills profitability. Changing dies and calibrators across different product runs traditionally takes hours of manual labor. You must unbolt hot heavy steel, align new components, and reconnect dozens of water and vacuum lines. Customizable PVC profile machinery utilizes quick-change systems to solve this.

Standardizing water and vacuum connections on downstream equipment drastically reduces changeover time. Using manifold blocks with quick-release couplings allows operators to swap calibration tooling in a fraction of the time. Modular die heads enable you to change the profile geometry without removing the entire adapter block from the extruder.

Co-Extrusion Upgrades

Market demands evolve, and your equipment must adapt. Adding satellite extruders to an existing PVC profile extrusion line expands your product offerings without requiring a completely new infrastructure. You can mount a small co-extruder onto the main die head to add specific features.

1. ABA Layers: Extrude a core of recycled PVC surrounded by thin layers of virgin material to reduce costs while maintaining surface finish.

2. Color Stripes: Add permanent identification stripes to pipes or cable trunking.

3. Soft Edges: Apply flexible sealing lips to rigid frames or skirting boards in a single pass.

4. Capping: Apply a weather-resistant ASA or PMMA layer over a standard PVC base for premium exterior products.

Implementation Risks and Mitigation Strategies

Tooling Calibration and Startup Waste

High scrap rates and material waste plague initial die tuning and line startup. Extrusion dies require precise internal flow balancing. If the melt flows faster through the center than the edges, the profile will warp as it cools. Tuning a new die on your factory floor wastes hundreds of kilograms of material and days of production time.

Mitigate this risk by mandating rigorous Factory Acceptance Testing (FAT). Require the machinery vendor to test the equipment using your exact material formulation and profile drawings before shipment. The vendor must tune the die, balance the flow, and prove the line can hold dimensional tolerances at the promised output speed. Never accept shipment until the FAT proves successful.

Operator Skill and Maintenance Requirements

Complex PLC interfaces and sensitive calibration requirements often lead to suboptimal running parameters. If operators do not understand how adjustments to vacuum pressure affect die swell, they will chase defects endlessly, increasing downtime and scrap.

Require vendor-supplied on-site training during installation. Operators must learn the specific thermal behaviors of the machine. Implement remote diagnostic capabilities via IoT connections. This allows the manufacturer's engineers to log into your PLC remotely, troubleshoot faults, and adjust parameters without flying to your facility. Finally, establish standardized operating procedures (SOPs) for daily, weekly, and monthly maintenance tasks to prevent catastrophic gearbox or barrel failures.

Conclusion

• Compile exact profile cross-section drawings, noting all critical dimensions, wall thicknesses, and required tolerances.

• Calculate your required hourly output (kg/h) based on market demand and facility operating hours to size the extruder correctly.

• Define your exact material formulation, including filler percentages, K-values, and regrind usage.

• Request detailed technical proposals that explicitly outline screw geometries, motor sizing, and downstream cooling capacities.

• Mandate a documented Factory Acceptance Test (FAT) using your specific resin blend before authorizing equipment shipment.

FAQ

Q: What is the difference between single-screw and twin-screw extruders for a PVC profile?

A: Single-screw extruders rely on friction to melt and pump flexible PVC pellets, making them ideal for soft sealing strips. Conical twin-screw extruders use two interlocking screws to mechanically compress and push rigid PVC powder. They provide the low-shear, high-pressure environment necessary for structural window and door frames without burning the material.

Q: Can one plastic profile production line produce both UPVC windows and cable trunking?

A: Yes, but it requires significant tooling changes. While a conical twin-screw extruder processes both rigid formulations, window profiles require much longer vacuum calibration tables and heavier haul-off units. Trunking runs faster and uses shorter cooling zones. Switching between them requires swapping dies, calibrators, and adjusting downstream speeds.

Q: What determines the required length of the vacuum calibration table in a PVC profile extrusion line?

A: The profile's weight per meter and internal complexity dictate the length. Heavy, multi-chamber profiles retain significant heat and require 6 to 8 meters of vacuum cooling to solidify completely. Lighter, simpler profiles only need 4 meters of calibration to freeze the outer dimensions.

Q: How do you control dimensional stability when extruding complex multi-chamber profiles for building insulation?

A: Dimensional stability relies on consistent melt pressure from the extruder, precise temperature control in the die, and aggressive, uniform cooling in the vacuum calibration blocks. Using servo-driven haul-off units prevents pulling surges, ensuring the internal chamber walls maintain exact thickness and structural integrity.

Q: Can a standard PVC profile production line be used to manufacture WPC decking or ceiling panels?

A: Adapting to ceiling panels requires changing the die and widening the downstream calibration. Manufacturing WPC decking is more complex. WPC contains abrasive wood flour, requiring specialized screw geometries with deep venting zones, bimetallic barrel coatings, and upgraded motor torque to handle the increased backpressure and friction.

Q: How does a PVC sealing strip production line differ from a standard rigid profile line?

A: A sealing strip line uses a single-screw extruder for flexible pellets instead of a twin-screw for powder. Downstream, it replaces rigid metal vacuum calibration blocks with an open water cooling bath to prevent stretching the soft rubber. It also uses roller haul-offs and coilers instead of caterpillar pullers and saws.
