Which Winding System Fits Wide Drainage Board Rolls?

Commercial and residential construction increasingly demands wider, seamless dimpled matrix systems. Consequently, the primary manufacturing bottleneck often shifts directly to the end of the line. The winding process requires significant attention. Operators face immense pressure to keep throughput high. Handling wide, rigid drainage board webs requires highly specialized end-of-line equipment. Standard winding units simply cannot manage these demands. They crush the fragile dimple core easily. If your machinery lacks precision, you risk roll telescoping and core collapse. Such defects quickly turn profitable runs into unusable scrap. In this article, we analyze the technical viability of various winding systems available today. We detail specific integration requirements necessary for smooth continuous operation. You will receive a robust framework for evaluating equipment upgrades based on tension control, automation capabilities, and overall material yield.

Key Takeaways

• Dimple Integrity is Paramount: Winding stiff, heavy-gauge HDPE requires precise taper-tension control to prevent core collapse or web deformation.
• Hybrid Systems Win for Wide Formats: Center-surface winders generally outperform standard center winders when processing heavy, 2-meter to 4-meter wide drainage rolls.
• Automation Drives ROI: Integrating automatic cutting, splicing, and roll-unloading mitigates the significant safety risks and downtime associated with handling massive finished rolls.
• System Synchronization: A winder must perfectly sync with upstream accumulator and extrusion speeds to maintain a viable plastic sheet production line.

The Engineering Challenge of Winding Wide Dimpled Sheets

Standard winding equipment fails consistently on wide-format dimpled sheets. It struggles because of the material's high rigidity. The irregular surface topography also presents massive handling difficulties. Finally, the immense finished-roll weight exceeds typical design limits. We see standard systems break down rapidly under these conditions.

Defect risks remain severe for operators. You must monitor two primary failure modes:

• Dimple Crushing: Excessive winding tension flattens the matrix structure entirely. It ruins the product's compressive strength. It also destroys critical flow rate specifications.
• Telescoping & Star-bursting: Insufficient tension causes immediate roll instability. The heavy HDPE web slides laterally. It creates unstable, unsellable rolls safely designated for the scrap bin.

Production realities require constant torque adjustments. Wide rolls serve large-scale foundation or retaining wall applications. Roll diameter increases exponentially during production. The equipment must dynamically adapt. It must maintain stability from the core to the final wrap.

Evaluating Winder Configurations for Drainage Boards

We must evaluate different mechanisms carefully. The industry relies on four main configurations. Each offers distinct advantages and disadvantages. Let us review them thoroughly.

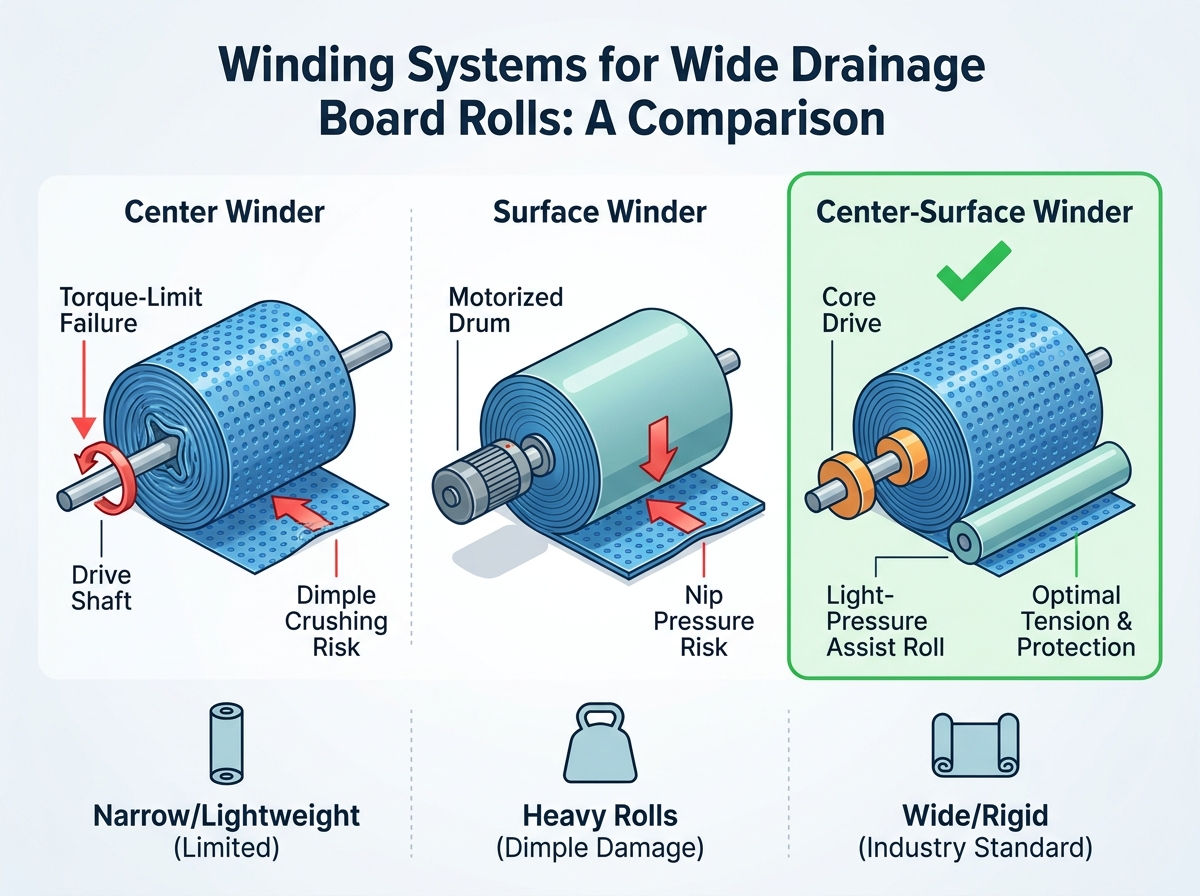

Winder Configuration Comparison Summary

Center winders operate entirely through the core shaft. They prove adequate for narrow or lightweight webs. However, they remain highly prone to torque-limit failures. They cause severe web stretching on heavy HDPE drainage board equipment.

Surface winders use a motorized friction drum. This drum presses against the outside of the roll. They support massive roll weight exceptionally well. Unfortunately, the required nip pressure easily crushes delicate dimpled profiles.

Center-surface winders represent the modern industry standard. They combine a center shaft drive and a lightly pressured surface assist roll. This hybrid approach proves optimal for a customizable drainage board production line. It enables independent control of web tension and nip pressure. You protect the dimples while preventing telescoping completely.

Turret winders feature dual-spindle indexing systems. They allow non-stop continuous production. They demand higher initial capital expenditure. However, they remain absolutely necessary for high-throughput environments. You need them for flying splices and zero extrusion downtime.

Key Evaluation Dimensions for Wide-Roll Equipment

Evaluating machinery requires a systematic approach. You must scrutinize four critical dimensions carefully. This ensures long-term operational success.

1. Tension & Torque Control Profiles: Look for closed-loop load cell systems. They automatically calculate and apply taper tension. Taper tension gradually decreases as the roll grows. It prevents core collapse effectively.
2. Edge Alignment & Web Guiding (EPC/LPC): The inherent stiffness of the material mandates robust edge position control mechanisms. They ensure perfectly flush roll edges.
3. Handling & Safety Infrastructure: Wide drainage boards result in massive finished rolls. They weigh hundreds of kilograms easily. Pneumatic or hydraulic automated roll-unloading carts are non-negotiable. They guarantee operator safety consistently.
4. Slitting & Taping Automation: Assess inline trimming capabilities closely. Determine if the winder supports automatic transverse cutting. It should also handle automatic roll sealing reliably.

Robust systems transform a standard setup into a high-performing drainage board production line. You eliminate manual interventions entirely.

Integrating the Winder into Your Plastic Drainage Sheet Extrusion Machine

Integration dictates overall factory efficiency. You must sync every downstream component precisely. Any mismatch disrupts the entire workflow.

Speed synchronization stands as your top priority. The winder’s drive systems must communicate seamlessly. They must talk directly to the extruder and vacuum-forming calendar. Proper communication prevents web snapping or unwanted slack. You must maintain perfect harmony across your plastic drainage sheet extrusion machine.

Accumulator dependency also requires careful planning. Highly responsive vertical or horizontal accumulators buffer the web smoothly. They provide critical time during roll changeovers. They keep the extruder running continuously.

Finally, you must respect footprint and layout constraints. Wide-web winders require significant floor space. You need ample room for the machine itself. You also need safe maneuvering space for forklifts. Automated guided vehicles (AGVs) retrieving finished rolls require wide aisles. Proper spacing ensures your plastic sheet production line operates safely and efficiently.

Shortlisting Logic & Vendor Selection Framework

Selecting vendors requires more than reading specification sheets. You must map specific features directly to operational outcomes.

First, demand feature-to-outcome mapping. Do not buy on specs alone. Require vendors to demonstrate tension consistency visually. They must test on actual rigid dimpled profiles. Flat sheet tests reveal nothing about dimple preservation.

Next, evaluate scalability and customization. Ensure the winder handles varying thicknesses comfortably. It should process 8mm to 20mm dimple heights effortlessly. It must also manage composite layers like geotextile laminations. Flexibility keeps your factory competitive.

Finally, verify maintenance and support infrastructure. Evaluate the availability of wear parts continuously. Check inventory for friction pads and tension controllers. Confirm ready access to slitting blades. Review the vendor's service level agreement strictly. Fast software troubleshooting minimizes disruptive downtime.

Common Mistake: Many operators ignore software update policies. Always confirm your vendor supplies control logic updates remotely. It saves costly on-site technician visits.

Conclusion

Selecting the correct winding system involves careful balancing. You must protect the fragile geometric structure of the drainage board. Simultaneously, you must manage the sheer physical mass of wide-format HDPE rolls.

For most manufacturers upgrading their end-of-line capabilities, a center-surface winder offers the most reliable path. Pair it seamlessly with closed-loop taper tension and automated unloading. This configuration reduces scrap rates significantly.

To take action today, audit your current scrap rates thoroughly. Identify telescoping and crushed cores specifically. Measure your maximum required web width accurately. Finally, request test-winding demonstrations from your short-listed equipment providers.

FAQ

Q: Can a standard flat-sheet winder be retrofitted for dimpled drainage boards?

A: Rarely with success. Standard flat-sheet winders lack the precise taper-tension software required. They also miss the low-pressure surface-assist mechanisms. Both are absolutely necessary to prevent dimple crushing and web deformation.

Q: What is the maximum roll width a standard center-surface winder can handle?

A: It remains highly dependent on the specific machine frame and shaft rigidity. However, advanced systems handle widths from 2 meters up to 4 meters or more. They achieve this without any detrimental bowing.

Q: How does inline geotextile lamination affect the winding process?

A: Composite drainage boards require the winder to account for differing elasticity. The stiff HDPE core behaves differently than the flexible geotextile fabric. The winder must maintain uniform tension across the web. This prevents delamination or wrinkling inside the finished roll.
