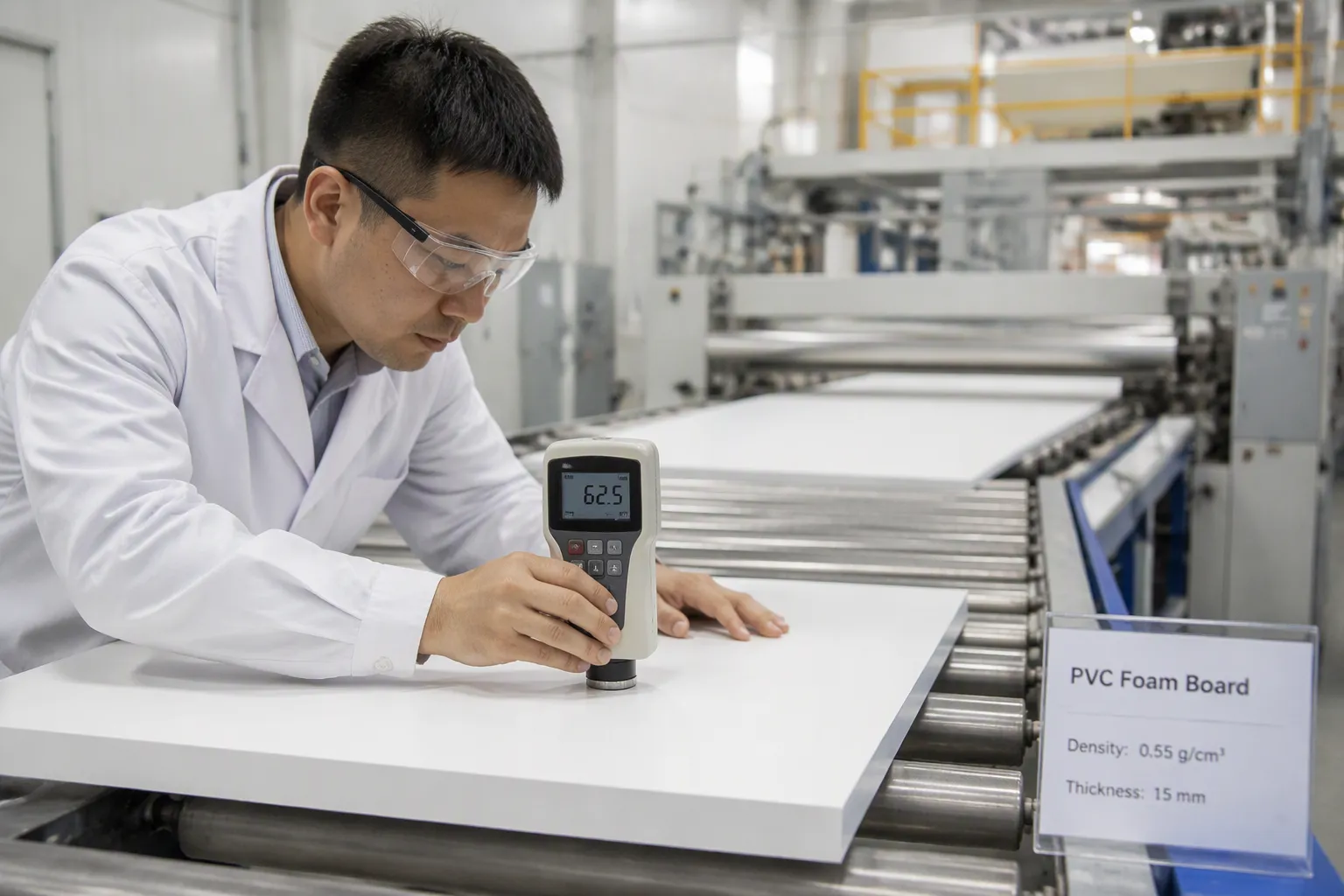

Surface hardness on a PVC Foam Board Production Line depends on two main things: the recipe and the processing. The resin grade, foaming agent, and filler load set the starting point. Temperature profile, cooling rate, and screw speed then decide how much of that starting point the surface actually keeps. The manufacturing process matters here because the skin forms and sets within seconds at the die and the cooling rolls. Small changes in either area show up fast as soft or uneven faces. This guide breaks down the recipe factors, processing settings, equipment design, and adjustment steps that let production teams tune hardness on a PVC foam sheet board extrusion machine production with confidence, whether the goal is a hard crust face for a print-ready PVC advertising board line for display or a softer free foam sheet.
Key Takeaways
Surface hardness depends on two main things: the recipe and the processing settings.
Resin K-value, foaming agent dose, and filler loading set the starting point for hardness.
Temperature, cooling speed, and contact time decide how much hardness the surface keeps.
Equipment design sets the highest hardness you can get; the quality of the screw, die, and calibration limits what any recipe can achieve.
Balance hardness with density and cost, and do regular checks each shift to catch problems early.
The recipe sets the limit for how hard a PVC foam board can get. Two recipe choices matter most: the resin grade and the foaming agent package. Both shape the skin before the material ever reaches the die.
Resin K-Value and Foaming Agent
Resin K-value tells you the molecular weight. A higher K-value resin makes a stiffer, tougher hard surface skin, because longer polymer chains resist bending out of shape. Lower K-value resins flow more easily but give a softer face. Formulators weigh this against processing load, since high K-value resin needs more torque and heat from the extruder.
The foaming agent controls cell structure and skin density. An exothermic agent breaks down over a narrow temperature range and causes fast expansion. An endothermic agent gives off gas more slowly and supports finer cells. The amount matters as much as the type. Too much gas pushes cells against the outer layer and makes the skin thin. A controlled dose lets the surface skins stay compact while the core expands. This balance gives the most surface density and hardness at a set density target. The celuka or skinning-type process relies on this balance, because it on purpose forms solid PVC surface layers over a foamed PVC core.
Filler Type and Loading
A common belief says more filler means a harder board. The truth is more complex. Calcium carbonate and similar fillers raise stiffness up to a point. Past that point, the filler waters down the polymer matrix that holds the surface together. The dense surface skin loses its grip, toughness drops, and the board turns brittle. Density also goes up, which raises shipping cost and weight. So each formulation needs a filler loading that supports surface quality without giving up impact strength or cost targets.
The crust versus free foam difference shapes these choices. Crust foam board forms smooth, dense surface skins against the calibration plates. That dense, smooth skin works well for high-end decoration and furniture, where a hard surface skin takes paint, laminate, and wear. Free foam board expands without a held-back skin, so it shows a slightly rougher surface. This surface finish fits advertising, printing, and engraving, where ink adhesion and machinability matter more than gloss. Matching the formulation to the end use keeps surface properties and cost in line. The manufacturing process then decides how much of that formulation potential the finished foamed PVC board really keeps.
Processing Parameters on the PVC Foam Board Production Line
Foaming happens in three stages: cells form, cells expand, and cells cure. The manufacturing process starts each stage, and expansion affects the final board the most, including surface hardness. The pressurized melt leaves the die at 20–30 MPa and meets normal air pressure. Then the dissolved gas becomes supersaturated and starts to nucleate at filler, pigment, and resin-domain boundaries. More nucleation points mean finer cells. Next, the sheet goes into vacuum calibration at negative 20 to 60 kPa, where cooling hardens the outer layer.
Extruder and Die Temperature Profile
Zone temperatures build the melt step by step. The feed zone runs 284–320 °F, the compression zone 160–175 °C, and the metering zone 170–185 °C. The die stays 10–20 °C hotter than the last extruder zone. This extra heat stops early cooling and a viscosity rise that would slow the flow. Melt-temperature control is very important during extrusion on any pvc foam board production line: if it is too hot, the foam collapses, and if it is too cool, it will not foam right. Even melt spread across the flat die matters just as much. Small imbalances cause density bands, thickness changes, and uneven skin formation.
Cooling locks in what the die started. In skinning processes, hot foamed melt touches cooled calibrator surfaces. So the outer layers quickly form dense, smooth solid surface layers while the core stays cellular. Calibration table surfaces usually run 40–60 °C. This range balances fast skin hardening against thermal shock that causes cracking or internal stress. Even plate temperature, water flow, and contact pressure create symmetrical skins. Uneven cooling causes bowing and a different surface look on the two sides. Bad conditions during extrusion on a pvc foam board extrusion line harm hardness and cell structure. A rough surface finish or weak outer layer often comes from incomplete fusion or not enough calibration cooling. Operators on a pvc foam board production line should treat these settings as one linked system, because a pvc foam board keeps the hardness its cooling allowed.
Equipment Design on the PVC Foam Board Extrusion Line
Equipment sets the top limit for hardness. A well-built line keeps tight control over melt, cooling, and pressure. That control lets the recipe and settings reach their full potential.
Screw Configuration and Die Design
The extruder builds melt quality. Qingdao Zhongrui Plastic Machinery Co., Ltd. fits its line with an SJSZ series twin-screw extruder under PLC control. The screw design controls shear, mixing, and melt uniformity. A counter-rotating twin-screw extruder gives steady conveying and gentle shear, which keeps the foaming agent from breaking down too early. The T-shaped die head then spreads melt evenly across the full width. Even flow at the die lip gives uniform density and a consistent skin.
Die design also shapes the solid surface layers. A well-matched die land and lip gap keep pressure high until the melt exits. That pressure holds gas in solution and delays foaming until the right moment. Buyers who ask how to select a pvc foam board extrusion line should start here, because screw and die quality decide what the rest of the line can achieve.
Calibration Table and Cooling System
The calibration table turns hot melt into a hard, flat board. Its cooling channels and shaping elements cool the board evenly while controlling thickness, width, and flatness. This even cooling gives a smooth and consistent surface finish and stops warping during cooling.
Design Parameter | Configuration Detail | Effect on Board Consistency |
|---|
Calibration table length | At least 4–6 m for high-output lines | Affects internal stress relief and flatness |
Vacuum zones | Multiple independent zones; first zone highest vacuum | Freezes the outer skin, then holds shape |
Water circulation rate | Governs cooling speed | Controls cooling uniformity |
Hydraulic pressure | Stable pressure from a hydraulic table | Produces flatter surfaces, especially on thick boards |
Common surface defects come from a few causes:
Operators should calibrate the unit per manufacturer instructions and optimize the cooling system for proper, even cooling. The full line also includes a multi-roller haul-off unit, an automatic cutting machine, and a stacking platform. Models W-915, W-1220, and W-1560 cover widths up to 1560 mm, thicknesses up to 25 mm, and outputs of 350–600 kg/h. The same pvc skinning wpc foam board extrusion line handles WPC foam board by adjusting formula and screw design.
WPC & PVC Foam Board Extrusion Line Manufacturing Guide
This section turns the earlier ideas into actions you can take at the line. Production engineers, quality managers, and operators can use these steps as a working routine for the wpc & pvc foam board extrusion line manufacturing and process guide.
Raising Hardness Without Defects
Operators should raise hardness in small, measured steps and check the board after each change. A sudden jump in any single setting usually creates a new defect before it makes the face harder.
Cut the foaming agent dose first. A slightly lower dose keeps the outer layer tight and makes the skin thicker. Watch for density creep and rising weight per board.
Raise the resin K-value by one grade. Stiffer chains give a harder skin, but the extruder needs more torque. Check screw load and melt temperature after the switch.
Adjust filler loading inside the proven window. A modest increase adds stiffness. Too much filler makes the skin brittle and hurts impact strength.
Tighten cooling. Keep calibration plate temperature in the 40–60 °C band and keep water flow even across the width. Faster, even skin setting locks in hardness.
Check that melt pressure at the die stays in the 20–30 MPa range. Stable pressure keeps gas in solution until the melt leaves the lip.
Run one change at a time and record the result. This habit protects the stable foam board process and prevents scrap.
Lowering Hardness While Protecting Density and Cost
Some markets want a softer, more flexible board for cutting and fabrication. The goal is a lower surface hardness without losing density control or driving up cost.
Reduce the foaming agent dose only a little and make up for it with a small rise in filler. This keeps density near target while the skin softens. A lower K-value resin also softens the face, and it flows more easily, which can lower energy use. Increase cooling contact time on the calibration table to hold flatness as the skin softens. Keep vacuum in the 20–60 kPa range so the outer layer still sets cleanly.
The production method changes density, surface hardness, and cost together. Crust foam delivers a hard, smooth surface finish for furniture and decoration. Free foam gives a softer face for advertising and engraving. Teams should pick the method that matches the end use, then tune within it. A clean surface and even cells remain the quality targets throughout the manufacturing process.
Troubleshooting Inconsistent Surface Hardness
Common Causes on the Line
Hardness problems seldom show up by themselves. Operators often find a soft spot beside a hard one on the same board, or a face that shifts from shift to shift. Three causes explain most of these cases. Improper processing conditions come first: a drifting melt temperature or a screw speed change alters how the gas expands at the die. Formulation drift comes second. A new batch of resin, a scale error on the foaming agent, or a filler with a different particle size shifts the recipe without warning. Cooling variation comes third. Uneven water flow or a plate temperature swing leaves one side of the board softer than the other.
Thickness control problems also appear as hardness problems. A board with a thick middle and thin edges usually points to uneven melt flow across the die or uneven vacuum across the calibration table. The thick middle cools more slowly, so its skin stays soft longer. The thin edges cool fast and set hard. The result is a board with a hard rim and a soft center. Operators on the pvc foam board production line should measure thickness across the width before they chase a hardness complaint.
Verification and Correction Steps
Verification starts with a simple check. Cut samples from the center and both edges of one board, then compare how each face resists a scratch or a press. A soft center with hard edges confirms a cooling or flow imbalance. Next, check the recipe records against the current batch and confirm the foaming agent weight. Then log melt temperature, die pressure, and calibration plate temperature for one full run.
Correction follows the evidence. For flow imbalance, adjust the die lip bolts in small steps and recheck thickness. For cooling variation, balance water flow across the table and confirm plate temperature stays in the 40–60 °C band. For formulation drift, reweigh the foaming agent and verify the filler grade. A weak skin or a rough surface finish often traces back to incomplete fusion, so raise the metering zone temperature slightly and watch the surface roughness improve.
Surface hardness is one of the key quality factors for any pvc foam board, together with color, flatness, and machine line quality. A steady manufacturing process on a well-built pvc foam board extrusion line keeps all four in range. Teams that treat these checks as a routine protect surface quality and catch a weak skin before it reaches the customer.
Formulation and processing are the two main levers for hardness on a pvc foam board line. Resin K-value, foaming agent dose, and filler loading set the starting point. Temperature profile, cooling rate, and contact time decide how much the surface keeps. Equipment design sets the ceiling, because screw, die, and calibration quality limit what any recipe can achieve.
Teams should tune hardness together with density and cost, never alone. A harder surface finish often adds weight, and a softer face can protect both budget and machinability. The troubleshooting steps above give operators a routine they can repeat. Run them each shift, and the manufacturing process stays steady, with a consistent surface on every board.
FAQ
What mainly decides surface hardness on a PVC foam board line?
The recipe and the processing share the job. Resin K-value, foaming agent dose, and filler loading set the potential. Zone temperatures, die pressure, and cooling then decide how much of that potential the skin keeps. Equipment design sets the ceiling for both.
Why does the same recipe give different hardness on different shifts?
Drift explains most of it. Melt temperature wanders, a new resin batch arrives, or the foaming agent scale reads wrong. Uneven water flow across the calibration table also leaves one side softer. Operators should log melt temperature, die pressure, and plate temperature every run to catch these shifts early.
Does a harder board always mean a better board?
No. Extra hardness usually adds density and weight, which raises shipping cost. A brittle skin also loses impact strength. The right target depends on the end use. Furniture and decoration favor a hard crust face, while advertising and engraving work well with a softer free foam surface.
How can operators check hardness without a lab?
A scratch or press test on samples cut from the center and both edges of one board reveals a lot. A soft center with hard edges points to a flow or cooling imbalance. A uniform response across the width suggests the line is steady. Teams should repeat the check each shift and record results.
Can one line produce both crust and free foam board?
Yes. The same line handles both types by changing the formulation and the calibration setup. Crust foam forms dense skins against the cooled plates for a smooth surface finish. Free foam expands without a held-back skin. Models W-915, W-1220, and W-1560 cover widths up to 1560 mm and outputs of 350–600 kg/h.
