How Are PET Strap Width and Thickness Changed on One Line?

Manufacturers constantly face shifting market demands. They must produce various specifications of PET strapping to meet diverse load-bearing requirements. These needs range from standard logistical packaging to heavy-duty industrial bundling. Buying entirely separate machine setups for every strap size drains capital. It also wastes valuable factory floor space.

Modern extrusion technology effectively solves this common manufacturing hurdle. It allows operators to adjust both the width and thickness of the strap on a single PET strapping production line. Advanced mechanical adjustments and automated controls make these transitions possible without overhauling the entire factory floor.

We will detail the mechanical adjustments necessary for these dimension changeovers. You will discover the precise process controls required to execute them effectively. This guide outlines crucial operational considerations for managing downtime. It ultimately helps buyers thoroughly evaluate machinery flexibility before making crucial procurement decisions.

Key Takeaways

• Dimension changeovers rely primarily on extrusion die adjustments, melt pump regulation, and drawing-roller speed synchronization.
• While a single line can handle multiple sizes, significant leaps in dimension (e.g., 9mm to 32mm) may require physical hardware swaps (like die lips or embossing rollers) rather than just digital input adjustments.
• Evaluating a customizable PET strapping production machine requires assessing its PLC automation capabilities, which dictate how quickly and accurately a line transitions between SKUs with minimal scrap.

The Business Case for Flexible Dimension Control

Modern packaging environments demand absolute versatility. Different industrial applications require distinct tensile strengths. They also need specific break points dictated by strap width and thickness. If your machinery lacks adaptability, you miss out on lucrative market segments.

Consider the varying demands of the current market:

• Heavy-Duty Steel Replacement: Thick, wide PET strapping effectively replaces traditional steel bands. It secures lumber, bricks, and heavy metal coils.
• Standard Palletizing: Medium-duty strapping stabilizes standard warehouse pallets. It balances cost and strength perfectly.
• Light Cartoning: Thinner straps secure smaller corrugated boxes. They prevent damage during rapid e-commerce shipping.

Investing in an innovative PET packaging belt production line capable of multiple dimensions drives excellent capital efficiency. You leverage one machine asset across multiple product categories. This consolidates floor space and centralizes your maintenance efforts. The alternative involves massive operational drag. Running separate, dedicated lines consumes immense capital upfront.

However, you must acknowledge the physical limits of flexibility. While one line remains adaptable, running extreme opposite ends of the spectrum presents challenges. Transitioning from a very thin 9mm strap directly to an ultra-thick 32mm strap often reduces overall efficiency. Pushing one machine to handle every possible extreme increases mechanical wear. It also mandates lengthy hardware swaps. Balancing flexibility with realistic production schedules ensures maximum output.

Core Extrusion Mechanics: Adjusting Thickness and Width

Changing dimensions begins at the heart of the machine. The extrusion phase dictates the initial volume and shape of the polymer melt. Operators must meticulously control die gaps, pump speeds, and cooling rates.

The T-die or multi-strand die head handles the primary physical adjustment. Thicker straps demand wider die lip gaps. Operators manage these gaps through two distinct methods:

1. Manual Adjustment Bolts: Technicians physically turn bolts on the die block. This widens or narrows the exit channel. It requires skilled hands and precise feel.
2. Thermal Expansion Bolts: Advanced lines use automated, heated bolts. The PLC sends a signal to heat specific bolts. They expand precisely, adjusting the die lip micron by micron.

Next, you must address the melt pump. Altering the RPM of this gear pump controls the exact volume of PET melt. The pump pushes this melt consistently through the die. When you increase the RPM, you force more mass into the system. This directly impacts the final mass and thickness of the strap. A higher volume pushed through a slightly wider die lip creates a robust, heavy-duty profile.

Once the melt exits the die, it hits the cooling and sizing tanks. This initial quenching bath requires immediate recalibration during a dimension change. Thicker profiles hold substantially more thermal mass. They require lower water temperatures and higher flow rates. If operators fail to adjust the quenching bath, the thicker strap cools unevenly. This poor thermal management causes warping. It also leads to inconsistent crystallization, which ruins the strap's tensile strength.

Stretching Ratio and Embossing Dynamics

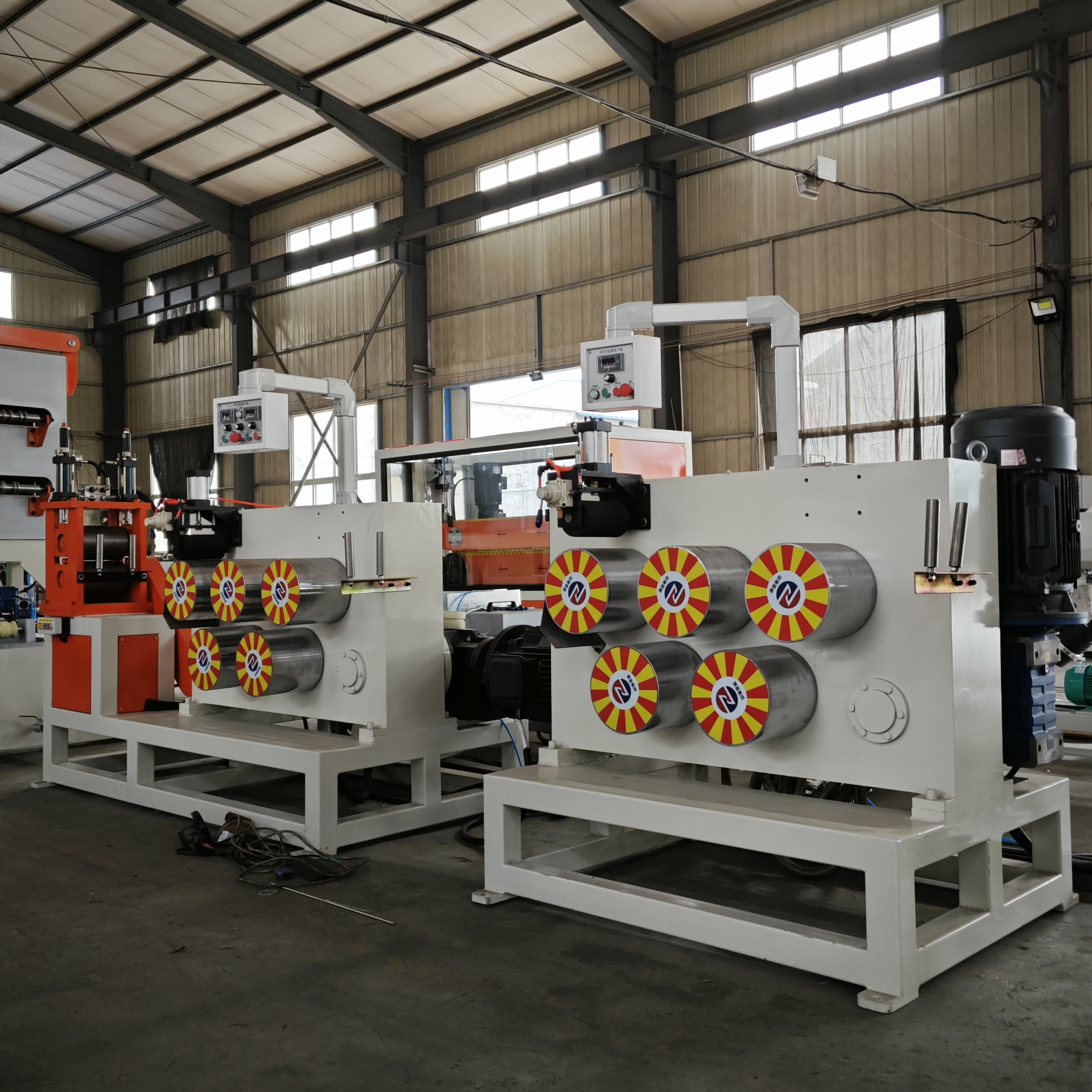

The extrusion die only sets the initial profile. The true strength and final dimensions emerge during the Machine Direction Orientation (MDO) phase. The drawing rollers dictate this critical stretching phase. They directly influence both final width and thickness.

Changing the speed ratio between the slow and fast rollers stretches the polymer chains. As the strap accelerates between heating ovens, it undergoes intense molecular alignment. This stretching process inherently reduces both thickness and width. Operators must calculate the exact draw ratio to reach the target tensile strength. If they stretch it too far, the strap snaps. If they stretch it too little, it remains brittle and oversized.

Following the stretching ovens, the strap encounters the embossing rollers. Transitioning from smooth to embossed PET strapping requires careful calibration. Embossing adds a diamond or waffle pattern to the surface. It increases friction for the strapping tool's gripper plates. When changing strap dimensions, you must adjust the pressure of these embossing rollers. Thinner straps require less pressure. Excessive force will crush a thin strap, compromising its structural integrity. Thicker straps require intense hydraulic pressure to imprint the pattern deeply enough.

Finally, rotary knives handle the edge trimming process. Machines typically extrude a slightly wider profile than required. Trimming the edges guarantees highly precise final width tolerances. It removes minor imperfections created during the extreme stretching phase. The trimmed scrap travels via vacuum tubes directly back to the extruder. This closed-loop system prevents material waste while maintaining perfect edge geometry.

Implementation Realities: Managing Downtime and Scrap

Dimension changeovers look simple on paper. In reality, they disrupt steady-state manufacturing. Plant managers must plan these transitions carefully to preserve profit margins.

Provide realistic expectations for your changeover timeline. Transitioning thickness on a standard packaging belt production line often proves faster than changing width. Adjusting the melt pump RPM and minor die lip tweaks takes just minutes. Conversely, massive width changes may require mechanical die adjustments. Sometimes they require entirely new die inserts. These hardware swaps easily consume several hours.

Dimension Changeover Efficiency Comparison

Material waste represents another harsh reality. Transitional scrap happens during every changeover. As the line stabilizes to the new temperatures and stretching speeds, off-spec strap emerges. You might produce several hundred meters of unusable product before hitting tight tolerances. This highlights the vital importance of integrating an edge-trim recycling system. Feeding scrap back into the hopper instantly offsets material losses.

Every dimension change requires immediate Quality Assurance (QA) testing. You cannot blindly resume full-speed production. Technicians must verify the break strength on a tensile testing machine. They check elongation percentages to ensure the strap retains flexibility. Crucially, they measure camber. Camber refers to the straightness of the strap over a given distance. Uneven cooling during a thickness changeover often creates a curved strap. A curved strap will jam automated strapping machines at the customer's facility.

Evaluating a PET Packaging Belt Production Line for Your Facility

Selecting the right machinery determines your future agility. Not all extruders handle changeovers with the same grace. You must scrutinize the technological backbone of the equipment.

Focus heavily on automation and recipe management. When shortlisting machinery, demand advanced PLC (Programmable Logic Controller) systems. These computers store "recipes" for different widths and thicknesses. The operator selects the 16mm recipe on the touchscreen. The PLC automatically adjusts extruder speeds, melt pump RPM, and oven temperatures. This automation slashes downtime and removes human error.

Next, inspect the drive and motor precision. High-precision stretching minimizes thickness variations. This requires servo-driven rollers. Standard Variable Frequency Drives (VFDs) often struggle to maintain the exact speed ratios needed during complex changeovers. Servo motors deliver instant torque corrections. They keep the MDO stretching ratio flawless, even as polymer viscosity shifts.

Finally, evaluate the vendor support network. Assessing a PET packaging belt production line means assessing the manufacturer behind it. Rapid changeovers require excellent training. Does the vendor provide comprehensive training programs? Do they teach your operators rapid changeover protocols? Proper maintenance training prevents damaged die lips during manual adjustments. A supportive vendor ensures your team maximizes the machine's inherent flexibility.

Conclusion

Changing strap width and thickness on one line represents a standard but highly precise orchestration. It requires balancing extrusion volume, die gaps, cooling rates, and stretching ratios perfectly. Modern technology makes this entirely feasible without sacrificing product quality.

However, you must remember the true cost of flexibility. That cost is changeover downtime. Procurement decisions should weigh the initial capital cost of automation heavily. Advanced PLCs and thermal bolts cost more upfront. Yet, they deliver massive long-term operational efficiency by slashing scrap and labor hours.

Take action before finalizing your equipment purchases. Always request actual cycle-time data for specific dimension changeovers. Ask machinery manufacturers exactly how long it takes to switch from your thinnest to your thickest SKU. Let hard data drive your investment.

FAQ

Q: What is the typical width and thickness range a single PET strapping line can produce?

A: A standard production line typically handles widths from 9mm to 32mm. Thickness usually ranges from 0.5mm to 1.2mm. While one machine accommodates this spread, jumping directly between these extreme ends often requires physical hardware swaps. Operators may need to change die lips or embossing rollers.

Q: How long does it take to change the dimensions on a standard production line?

A: Minor thickness adjustments happen quickly. Altering the melt pump RPM takes just a few minutes. However, moderate width adjustments require 30 to 60 minutes for manual die tuning. Extreme dimension changes requiring full die hardware swaps can take two to four hours.

Q: Does changing the strap thickness affect the required embossing depth?

A: Yes. Roller pressure must be carefully recalibrated. Thinner straps require significantly less embossing pressure. If you apply heavy pressure to a thin strap, you crush its polymer structure and compromise tensile integrity. Proper calibration maintains vital friction characteristics without destroying the belt.
