How Does PET Intrinsic Viscosity Affect Strap Strength?

Inconsistent tensile strength and spontaneous splitting in PET strapping often lead to catastrophic load failures during transit. These failures disrupt supply chains. They also pose severe safety risks for warehouse personnel. Why do these quality drops happen? The root cause usually traces back to degraded polymer chains inside the plastic itself. Intrinsic Viscosity (IV) serves as the definitive predictive metric for polymer molecular weight. It ultimately dictates final strap durability. We must understand and control this metric to guarantee product integrity.

This article bridges the critical gap between polymer science and equipment evaluation. It demonstrates how proper machinery design stabilizes IV to ensure consistent strap strength. You will learn the physics behind molecular orientation. We will explain why processing recycled materials demands highly specialized equipment. We also explore essential extrusion features required to mitigate polymer degradation during manufacturing. Ultimately, you will discover how selecting the right production line automates quality control and secures your overall yield.

Key Takeaways

• Intrinsic Viscosity (IV) directly dictates the molecular chain length of PET; higher IV yields superior tensile strength and split resistance in the final strap.
• Processing variables—specifically moisture content and thermal shear—cause IV degradation during extrusion.
• Utilizing recycled PET (rPET) introduces significant IV variability, making advanced material handling and extrusion technology mandatory.
• Evaluating a PET strapping production line requires scrutinizing its dehumidification capabilities, screw geometry, and automated melt-pressure controls to prevent polymer degradation.

The Physics of Intrinsic Viscosity and PET Strapping Strength

Defining the Metric

Intrinsic Viscosity measures the molecular weight and polymer chain length of PET. We express this metric in deciliters per gram (dL/g). Higher values indicate longer, heavier polymer chains. Many operators confuse IV with Melt Flow Index (MFI) or general melt viscosity. Melt viscosity simply measures how easily a melted plastic flows under specific conditions. MFI measures the mass of polymer flowing through a capillary in ten minutes. IV provides a far more accurate representation of structural integrity.

Table: Distinguishing Intrinsic Viscosity from Melt Flow Index

The Strength Correlation

Longer polymer chains allow for optimal macromolecular orientation. During the production process, machinery stretches the extruded plastic. The stretching phase aligns the polymer molecules parallel to the strap’s axis. High-IV materials possess longer chains. These chains entangle securely. Deep molecular entanglement yields immense tensile strength. It also significantly reduces brittleness. Short chains simply slip past one another under tension. This slippage causes sudden snapping and dangerous load failures.

Best Practice: Always test the IV of your raw material batches before processing. Knowing your starting baseline helps you adjust heating zones to minimize further degradation.

The Breaking Point

Producers must respect minimum IV thresholds based on strapping applications. Failing to meet these thresholds compromises the physical product. Heavy-duty PET strapping requires starting materials exceeding 0.80 dL/g. Standard-duty applications can sometimes manage 0.70 dL/g. Once IV drops below critical limits, severe longitudinal splitting occurs. The strapping loses its elongation recovery. It cannot stretch and bounce back when loads shift.

• Heavy-Duty Applications: Require superior impact resistance. Low IV leads to immediate snapping upon impact.
• Standard-Duty Applications: Need consistent tension retention. Low IV causes the strap to stretch out and loosen over time.
• Weld Integrity: Degraded polymer chains cannot form strong friction welds. Packages break apart at the seal.

Why Recycled PET (rPET) Makes IV Control a Critical Business Risk

The rPET Variable

Sourcing 100% rPET flakes introduces extreme processing variables. Recycled bottle flakes come from mixed base materials. One bale of bottles might feature an IV of 0.75 dL/g. Another bale might sit at 0.65 dL/g. This causes severe lot-to-lot fluctuations in your hopper. Extruding mixed materials requires robust process control. Without it, you cannot predict the durability of the final strap. Manufacturers must utilize a PET strapping and packaging belt production line capable of stabilizing these volatile inputs.

Hydrolytic Degradation

Trace moisture destroys PET at extrusion temperatures. This chemical reality governs all PET manufacturing. Water molecules react with ester bonds inside the polymer when heated. This reaction cleaves the polymer chains. We call this hydrolytic degradation. A tiny amount of water rapidly crashes the IV. The degradation cycle unfolds sequentially:

1. Moisture remains trapped inside the rPET flake.
2. Flakes enter the heated extruder barrel.
3. Heat and moisture trigger an immediate chemical reaction.
4. Polymer chains fracture into smaller segments.
5. The resulting melt loses its structural integrity before reaching the die.

Impact on Yield & Profitability

Uncontrolled IV drops severely impact production yield. Brittle plastic breaks during the high-speed stretching phase. Line breakages cause expensive machine downtime. Operators must halt production, clean the line, and re-thread the machinery. Increased scrap rates destroy profit margins. Furthermore, compromised final product quality harms your reputation. Consistent strength guarantees customer retention. You must view IV control as a fundamental business protection strategy.

Core Equipment Features to Mitigate IV Loss in Production

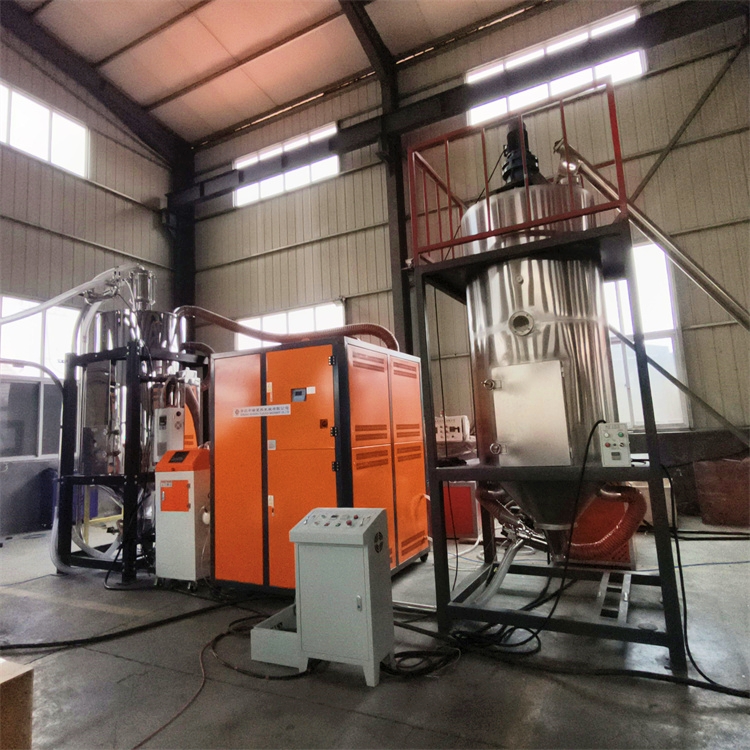

Aggressive Dehumidification

Standard drying mechanisms cannot properly prepare PET. A high-performance production setup must achieve ultra-low dew points. Target a dew point of -40°C or lower. You must halt hydrolytic degradation entirely before the melting phase begins. Advanced desiccant rotor technology removes deep-seated moisture from the core of the flake. Effective drying typically requires continuous airflow and careful temperature management over four to six hours.

Common Mistake: Relying on simple hot-air dryers. Hot air removes surface moisture but leaves internal moisture intact, guaranteeing chain scission in the extruder.

Optimized Extrusion Geometry

Mechanical shear breaks polymer chains just as easily as water does. Fast, aggressive screw designs rip the macromolecules apart. A modern PET strapping production line features low-shear screw geometry. These specialized screws melt the polymer uniformly. They rely on controlled conductive heating rather than aggressive mechanical friction. Gentle melting preserves the chain length. The physical design of the screw dictates the survival rate of the molecular structure.

Melt Pump and Filtration Stability

Continuous melt pumps play a pivotal role in process stability. They stabilize pressure variations originating from the extruder barrel. Viscosity variations in the hopper cause uneven flow. The melt pump acts as a metering device. It ensures a uniform, steady volume of plastic reaches the die head. It functions flawlessly regardless of minor IV shifts in the raw material. Dual-piston continuous screen changers also prevent pressure spikes during filtration. Maintaining steady pressure limits additional thermal degradation.

Evaluating an Innovative PET Packaging Belt Production Line for IV Automation

Inline vs. Offline Monitoring

Traditional operations rely on manual sample testing. Lab technicians extract samples, dissolve them in solvents, and measure flow rates. This offline testing takes hours. By the time operators receive the results, the machine has already produced miles of defective strap. Continuous inline rheological monitoring solves this issue. Advanced sensors read melt pressure and temperature instantaneously. An innovative PET packaging belt production line uses these feedback loops to guarantee quality every single minute.

Automated Parameter Adjustments

Smart machinery removes human guesswork. When sensors detect a drop in viscosity, the control system reacts immediately. It automatically adjusts screw RPM. It lowers specific heating zones in real-time. This active compensation neutralizes viscosity fluctuations before they impact the final product. The system increases tension or adjusts cooling bath temperatures to maintain physical properties. Automated adjustments prevent the line breakages associated with manual operation.

Scalability and Upgrades

Investing in automation scales your business efficiently. High-volume shifts require repeatable quality. Relying on veteran operators to constantly tweak settings limits your growth potential. Programmable logic controllers (PLCs) store recipes for different rPET batches. Operators simply select the appropriate recipe. The machine handles the micro-adjustments. This scalability ensures consistent output across multiple shifts and varying material sources.

Shortlisting a Customizable PET Strapping Production Machine

Matching Machinery to Material Feeds

You must specify equipment based on your primary feedstock. Processing virgin resin is relatively straightforward. Processing 100% post-consumer mixed bottle scrap requires intense configuration. Look for a customizable PET strapping production machine. It should offer specialized hoppers, multi-stage filtration, and robust degassing zones. Vacuum degassing vents remove impurities and moisture directly from the melt. This feature provides a secondary defense against hydrolytic degradation.

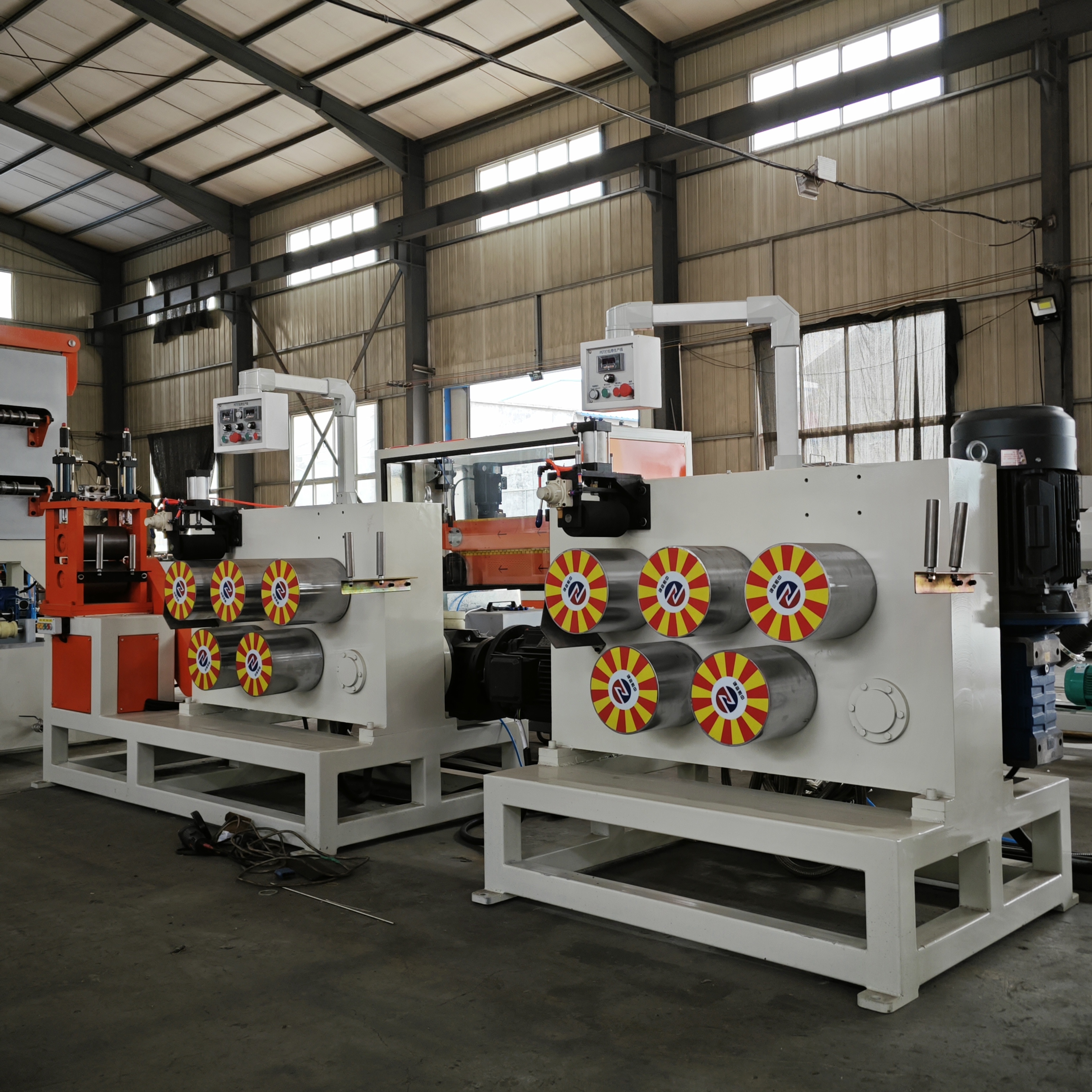

Stretching and Annealing Customization

The orientation process locks in the physical strength of the strap. Adjustable stretching ovens and annealing Godets allow operators to fine-tune this stage. You must match the stretching ratio to the specific IV profile of the extruded melt.

• First Stretching Stage: Aligns the polymer chains in a heated water bath or short oven.
• Second Stretching Stage: Multiplies the tensile strength using high-speed Godet rollers inside a radiant oven.
• Annealing Stage: Relieves internal molecular stress. This prevents the strap from shrinking after you spool it.

A reliable PET packaging belt production line provides independent speed and temperature controls for every single Godet stand.

Vendor Evaluation

Never take a manufacturer's claims at face value. Verify their capabilities thoroughly. Request trial runs using your specific rPET flakes. Send them bales of your worst-case material. Observe how their equipment handles severe IV fluctuations. Check the tensile strength and elongation of the test straps. Ensure their control software actually adjusts parameters automatically during the trial. Partner with vendors who understand polymer rheology deeply.

Conclusion

Controlling Intrinsic Viscosity transcends basic material science. It represents a fundamental equipment capability issue. You cannot produce superior strapping from variable rPET flakes using outdated, rigid machinery. Consistent strapping strength requires a holistic approach. You must control every variable from aggressive pre-drying to intelligent extrusion and final thermal annealing.

If you experience frequent line breakages or customer complaints regarding strap splitting, take immediate action. Audit your current extrusion capabilities. Focus heavily on your dehumidification systems and screw geometries. Consult with specialized equipment manufacturers to design a line perfectly optimized for variable IV inputs. Protecting your molecular structure protects your entire operation.

FAQ

Q: What is the ideal Intrinsic Viscosity (IV) for heavy-duty PET strapping?

A: Heavy-duty PET strapping typically requires a final IV between 0.75 and 0.85 dL/g. Reaching this target often means starting with raw materials exceeding 0.80 dL/g, as the extrusion process naturally degrades the polymer slightly. This high IV prevents longitudinal splitting under immense tension.

Q: How much does IV typically drop during the extrusion process?

A: Under optimal conditions, IV drops by 0.02 to 0.04 dL/g during extrusion. However, if moisture exceeds 50 ppm or excessive mechanical shear occurs, the IV can crash by 0.10 dL/g or more. Proper dehumidification and low-shear screws minimize this unavoidable drop.

Q: Can I produce high-strength PET strapping using 100% recycled bottle flakes with varying IV?

A: Yes, but it requires highly specialized equipment. You must use advanced desiccant dryers, continuous melt pumps, and automated inline parameter adjustments. These technologies stabilize the melt pressure and viscosity, compensating for the inconsistent initial IV of mixed post-consumer flakes.

Q: How does melt temperature directly affect the final IV of the extruded strap?

A: High melt temperatures accelerate thermal degradation and chain scission. If the extruder barrel runs too hot, the polymer chains break apart rapidly, severely lowering the IV. Keeping temperatures as low as possible while maintaining a homogeneous melt preserves chain length.

Q: What is the difference between Intrinsic Viscosity and Melt Viscosity in PET manufacturing?

A: Intrinsic Viscosity measures the actual molecular weight and polymer chain length, dictating final structural strength. Melt Viscosity simply measures the fluid resistance of the melted plastic inside the extruder. While related, IV serves as a much more reliable predictor of strap durability.
