How Dry Must PET Flakes Be Before Strap Extrusion?

When manufacturing PET strapping, achieving maximum tensile strength relies on one non-negotiable parameter: strict moisture control. You cannot bypass rigorous drying without severely compromising the structural integrity of your final product. Recycled PET (rPET) flakes naturally absorb ambient moisture very quickly. When exposed to extreme melt temperatures during extrusion, any residual water triggers aggressive hydrolytic degradation. This chemical reaction acts rapidly to destroy the polymer chain length permanently.

To prevent sudden drops in intrinsic viscosity (IV), operators must meet strict technical benchmarks before processing begins. We will explore exactly how dry these flakes must be to succeed. Selecting the right equipment ensures consistent, high-grade output every single shift. You will learn the best practices for moisture measurement and evaluate various drying technologies. Resolving these challenges upstream will optimize your daily manufacturing operations and safeguard your final product quality.

Key Takeaways

• PET flakes must be dried to a moisture content of 30 to 50 ppm (0.003% to 0.005%) prior to standard extrusion.
• Failing to reach this threshold causes severe Intrinsic Viscosity (IV) loss, resulting in brittle straps that split or break under tension.
• The choice of drying technology (desiccant, infrared, vacuum, or multi-vented twin-screw extrusion) directly dictates the energy efficiency and footprint of your packaging belt production line.

The Business Cost of Inadequate Moisture Control in PET Strapping

Understanding hydrolytic degradation is essential for any extrusion operator. Water molecules trapped inside rPET flakes act destructively under intense heat. At typical melt temperatures around 280°C, water becomes a chemical scissor. It aggressively cleaves the long polymer chains defining PET plastic. Shorter chains inherently mean weaker physical properties. You lose tensile strength instantly.

A successful production run hinges on maintaining raw material integrity. Your input flakes usually possess an Intrinsic Viscosity (IV) around 0.75 dl/g. Producing heavy-duty strapping successfully demands an IV between 0.70 and 0.85 dl/g. Failing to remove moisture causes the IV to plummet below acceptable thresholds. The extruded plastic loses its elasticity.

The resulting business impact stretches far beyond minor quality defects. Inadequate drying creates immediate financial losses on the factory floor. High scrap rates erode your profit margins daily. Brittle straps fail consistently during automated friction welding processes. They split longitudinally when packaging machines apply tension. Eventually, load-shifting failures ruin commercial credibility. You lose customers fast when pallets collapse in transit. Integrating a fully optimized PET strapping and packaging belt production line minimizes these exact business risks.

Defining the 50 PPM Standard for Extrusion Preparedness

Single-screw extruders demand absolute dryness. The global plastics industry enforces a strict moisture limit below 50 ppm (parts per million). This limit serves as a hard boundary. Exceeding it guarantees immediate molecular degradation. Why exactly 50 ppm? At this microscopic concentration, any remaining water evaporates harmlessly inside the barrel. It escapes before cleaving molecular bonds.

You must treat rPET flakes differently than virgin pellets. Virgin pellets are spherical and smooth. Flakes possess highly irregular shapes and sharp edges. They offer a significantly higher surface area per kilogram. This expanded physical geometry makes them highly hygroscopic. They absorb ambient atmospheric moisture much faster than standard pellets. Therefore, they require far more aggressive crystallization. They demand longer, more rigorous hot-air cycles.

Manual moisture sampling fails to provide adequate security. Operators often pull cup samples periodically for laboratory testing. This outdated method leaves massive blind spots in your quality control protocol. We strongly recommend installing inline moisture analyzers directly on the feed throat. These digital sensors monitor water content continuously. They guarantee strict compliance just seconds before the material enters your PET strapping production line. You catch dangerous moisture spikes instantly.

Evaluating Drying Solutions for Your Packaging Belt Production Line

Engineers must select the proper industrial drying architecture carefully. The technology you choose dictates floor space requirements and daily operating expenses.

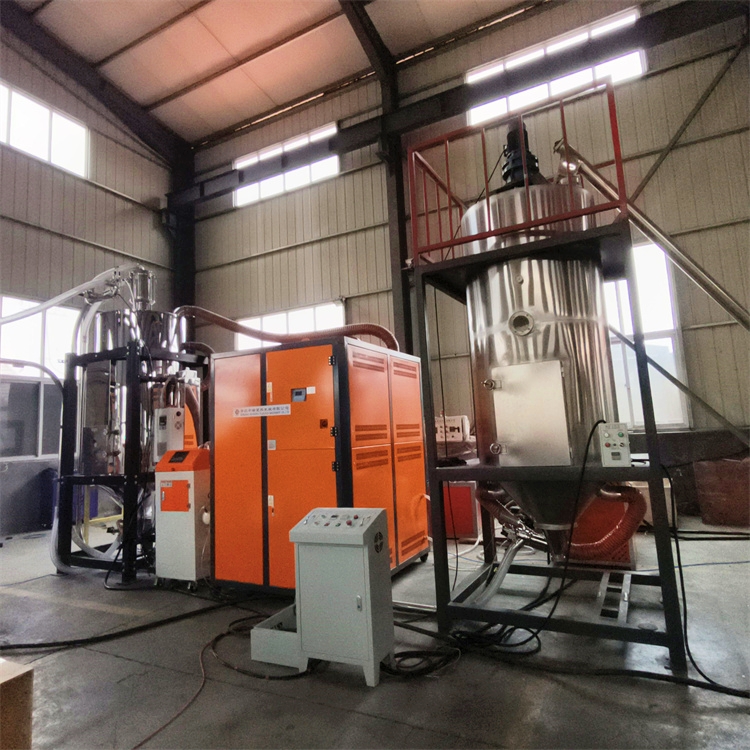

The traditional standard pairs a crystallizer tank above a desiccant dryer. This combination delivers highly predictable results. Hot, ultra-dry air circulates continuously through the flake bed. You gain immense reliability. However, desiccant wheel regeneration consumes significant amounts of electrical energy.

Infrared (IR) rotary dryers offer a modern alternative. IR radiation penetrates the plastic flake directly. It forces rapid heating from the inside out. This method combines crystallization and drying into one single, continuous step. You save valuable factory floor space. You slash energy consumption substantially.

Vacuum dryers operate using entirely different physics. Lowering the atmospheric pressure lowers the boiling point of water. Moisture vaporizes at much lower temperatures. This prevents thermal degradation completely. It stops severe yellowing, keeping your clear flakes visually pure.

Finally, multi-vented twin-screw extruders take a radical approach. They bypass intense pre-drying altogether. These advanced machines utilize deep vacuum extraction zones along the extrusion barrel. Moisture boils off and vents outward precisely during the melt phase.

Drying Technology Comparison Chart

When configuring a custom setup, weigh your capital expenditure (CapEx) directly against operating expenses (OpEx). Energy costs fluctuate wildly across different regions. A smart technology choice ensures a highly profitable PET packaging belt production line for decades.

Implementation Risks in High-Volume Flake Processing

High-volume processing introduces distinct physical handling challenges. Failing to address material behaviors leads to costly downtime.

1. Caking and Agglomeration: Amorphous PET becomes inherently sticky when heated above 80°C. If you apply high heat without constant physical agitation, the individual flakes melt together. They clump into massive, solid blocks. These blocks instantly choke hopper feeds and halt production. Proper mechanical crystallization keeps them moving freely.
2. Bulk Density Variations: Recycled flakes vary wildly in size and weight. Light, fluffy flakes feed much differently than thick, dense ones. This irregularity causes erratic mass flow down the hopper throat. You lose melt pressure consistency inside the barrel. Proper mass flow engineering prevents extruder starvation.
3. Contamination Overlap: Mixed recycling streams often contain PVC remnants. They also carry residual paper labels and dirt dust. Prolonged high-temperature drying chars these specific contaminants. You end up generating hard black specks. These specks create catastrophic weak points in the final extruded strap.

Operators must inspect raw materials rigorously. Establishing a strict cleaning protocol before the drying phase prevents these risks entirely.

Shortlisting a Customizable PET Strapping Production Machine

Procuring new factory equipment requires strategic foresight. We recommend evaluating several critical mechanical dimensions before purchasing.

Examine the integrated architecture closely. Does the manufacturer offer a perfectly synchronized system? The dryer's maximum throughput capacity must match the extruder's maximum draw rate exactly. Imbalances cause either material degradation from over-drying or moisture spikes from rushing the cycle.

Energy recovery systems separate average machines from elite ones. Heat costs money continuously. Look for intelligent thermodynamic designs. The best systems recycle residual heat from the extrusion process directly back into the drying hopper. This closed-loop approach slashes your monthly utility bills.

Modularity guarantees future-proof manufacturing. Your raw material inputs will inevitably change over time. You might transition from pristine bottle flakes to lower-grade mixed plastics. You need the ability to upgrade your setup easily. The capacity to transform a standard setup into an innovative PET packaging belt production line keeps you competitive. Swapping a standard single-screw unit for a vented twin-screw system should be a straightforward engineering upgrade.

When selecting a customizable PET strapping production machine, always demand physical material trials. Ship your specific local rPET flakes to the manufacturer. Run them through the proposed machinery. Prove the exact throughput and IV retention claims before signing any purchase agreements.

Conclusion

Moisture removal stands as the most critical preparatory step in plastics extrusion. It serves as the primary safeguard of product strength and IV retention. We have seen how hydrolytic degradation ruins physical properties permanently. Adhering to the strict 50 ppm threshold protects your polymer chain lengths from heat-induced destruction.

Take action by auditing your current moisture measurement protocols immediately. Upgrade from manual sampling to inline continuous sensors. Evaluate whether your current drying architecture wastes excessive electrical energy. Resolving the moisture challenge upstream guarantees higher machine uptime. You will achieve better tensile consistency and secure long-term profitability.

FAQ

Q: Can I skip pre-drying if I use a twin-screw extruder?

A: Yes, in many cases. Multi-vented twin-screw extruders utilize deep vacuum zones along the barrel to extract moisture during the melt phase. However, if your raw flakes are exceptionally wet, you may still need a brief pre-drying or crystallization phase to prevent overwhelming the vacuum ports.

Q: How long does it take to dry PET flakes to 50 ppm?

A: Traditional crystallizer and desiccant dryer setups typically require 4 to 6 hours to achieve 50 ppm. Infrared (IR) rotary dryers accelerate this process significantly, often reaching the required moisture levels in just 15 to 45 minutes by applying direct radiation heat.

Q: How does moisture affect the Intrinsic Viscosity (IV) of PET?

A: Moisture causes hydrolytic degradation at extrusion temperatures. Water molecules chemically attack and cleave the long polymer chains. This severing action reduces the molecular weight, causing a sharp drop in Intrinsic Viscosity (IV) and resulting in brittle, weak strapping.

Q: Can over-drying damage PET flakes?

A: Yes. Subjecting PET flakes to excessive heat for prolonged periods causes thermal degradation. The material begins to oxidize and turn yellow, ruining the visual clarity. Additionally, over-drying wastes significant electrical energy without providing any further reduction in moisture content.
