PET Strapping Line Controls for Stable Tensile Strength

Manufacturing PET strapping carries a major operational risk. Variations in tensile strength can ruin your end product. These fluctuations often lead to warping, longitudinal splitting, or complete failure during heavy-load applications. What causes this instability? The root cause usually traces back to inconsistencies in the polymer melt. Unstable drawing tension and poor thermal stabilization also play massive roles. This becomes especially problematic when you utilize recycled PET flakes. You need robust systems to handle these material variables effectively.

Our article provides a detailed framework for equipment evaluation. We aim to help plant managers and technical buyers assess line control capabilities. You will learn what components matter most when upgrading or investing in a PET strapping and packaging belt production line. We focus on practical automation features over theoretical outputs.

Key Takeaways

• Stable tensile strength relies on closed-loop feedback systems managing melt pressure, stretching ratios, and annealing temperatures in real-time.
• Processing 100% recycled PET requires advanced moisture and intrinsic viscosity (IV) controls to prevent polymer degradation and strap brittleness.
• Evaluating an innovative PET packaging belt production line should prioritize automated gauge controls and synchronous drive systems over theoretical maximum speeds.
• Investing in a customizable PET strapping production machine allows manufacturers to tailor heating zones and draw ratios for specific heavy-load strap specifications.

The Operational Cost of Tensile Inconsistency

Problem Framing

Precision controls dictate the physical integrity of every strap you produce. When your production line lacks exact automation, several physical defects emerge. Camber and warping occur. Longitudinal splitting becomes common. Break strength drops significantly below industry standards. These defects stem directly from uneven molecular orientation. Polymer chains fail to align properly under inconsistent tension. This creates severe weak points along the strap.

Impact on Heavy-Load Applications

Defective strapping introduces catastrophic risks in demanding industries. Lumber yards, metallurgy plants, and construction sites push packaging materials to their absolute limits. A sudden strap failure during transit releases immense stored energy. Heavy lumber stacks collapse. Steel coils unspool violently. This causes massive product damage. It also exposes manufacturers to severe liability claims. Consistent break strength acts as the primary defense against these industrial accidents. Relying on an unoptimized PET strapping production line directly threatens end-user safety.

The Recycled Material Variable

Substituting virgin resin for recycled PET (rPET) reduces material expenses. However, rPET amplifies processing instability significantly. Recycled bottle flakes bring fluctuating melt flow indices. The intrinsic viscosity varies from batch to batch. Line controls must automatically adjust to these continuous fluctuations. If the extrusion system cannot adapt, the polymer degrades. The resulting strap becomes brittle and snaps easily. Successful rPET processing demands highly responsive, automated control loops.

Melt Extrusion and Pressure Regulation

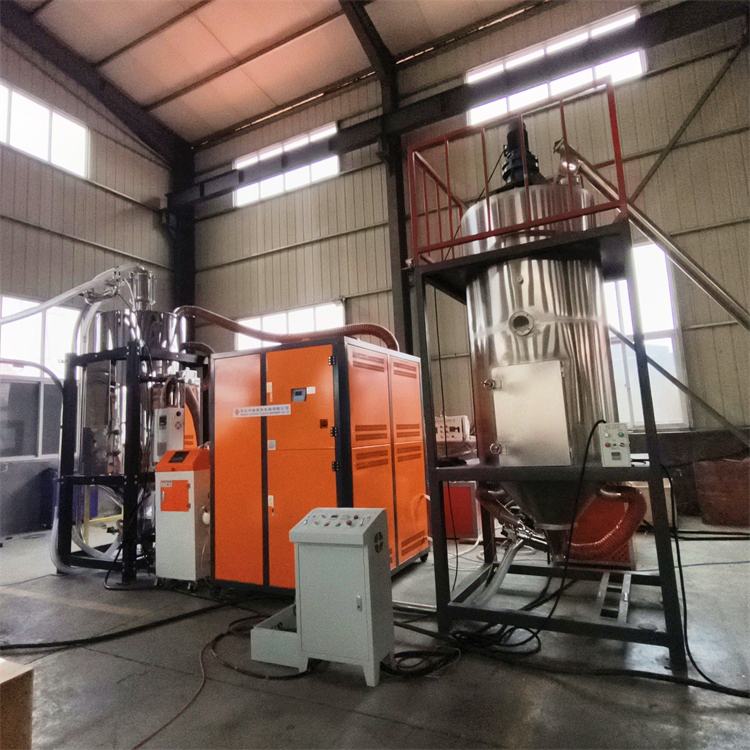

Closed-Loop Dosing and Drying

Uniform intrinsic viscosity (IV) begins long before the plastic melts. You must monitor moisture continuously. Precise gravimetric dosing guarantees uniform material blending. Extrusion requires perfectly dried flakes. Moisture actively destroys polymer chains during the heating process. This degradation causes a drastic drop in IV. Closed-loop drying systems measure the dew point of returning air. They adjust desiccant beds automatically. This keeps the resin in an optimal state for extrusion.

Melt Pressure Automation

Gauge variations act as fatal failure points under high tension. Thick and thin spots ruin the structural integrity of the strap. Melt pumps integrated into PLC feedback loops prevent these variations. They stabilize output effectively. As extruder pressure fluctuates, the melt pump adjusts its speed. This ensures a perfectly constant volume of plastic reaches the die head. Pressure automation eliminates the pulsing effect often seen in older machines.

Filtration Controls

Contaminants in recycled flakes demand aggressive filtration. However, changing screens usually disrupts melt pressure. You must utilize continuous, automated screen changers. They maintain stable pressure during filter swaps. This technology prevents line interruptions. It ensures uninterrupted uniformity across the entire run. Micro-contaminants create stress risers in the finished strap. Automated backflush systems keep the screens clean without requiring manual intervention.

Table: Virgin vs. Recycled PET Extrusion Control Requirements

Synchronized Stretching for Maximum Break Strength

The Physics of Orientation

Tensile strength does not come from the extruder. It comes from mechanical stretching. This process aligns polymer chains into a tight crystalline structure. This alignment creates massive pulling resistance. Micro-fluctuations in line speed ruin this orientation. If a roller slips slightly, the chains relax. This creates a brittle zone. You must maintain absolute speed synchronization to achieve maximum break strength.

Multi-Stage Draw Ratios

Primary and secondary stretching ovens require tight control. Operators must set exact draw ratios. Synchronized servo-drives are mandatory for this process. They maintain exact tension ratios across all godet rollers. An innovative PET packaging belt production line uses multi-axis motion controllers. These controllers monitor the torque of each roller individually. If one motor lags by a fraction of a second, the system compensates instantly. This prevents the strap from snapping inside the oven.

Temperature Precision

Stretching zones demand localized temperature tolerances. You must hold variations to ±1°C. Heat dictates polymer elasticity. If the oven drops below the target, the strap snaps. If it runs too hot, the strap melts and loses orientation. Advanced systems use infrared pyrometers. They measure the actual temperature of the strap, not just the ambient air. This precision prevents longitudinal splitting later on.

Summary Chart: Temperature and Ratio Metrics Across Production Zones

Thermal Annealing and Dimensional Stability

Relaxation Ratios

Stretching creates massive internal stress within the plastic. Annealing relieves this stress safely. This setting phase prevents post-production shrinkage. It stops unwanted warping over time. You must control relaxation ratios accurately. Operators typically allow the strap to relax by a small percentage inside the setting oven. This locks the molecular bonds into their new elongated shape. Without proper annealing, the strap will shrink violently when exposed to summer heat during transport.

Cooling Bath Automation

The annealing process requires an abrupt end. Automated water temperature controls are essential. Precise flow controls instantly freeze the polymer structure. This rapid cooling locks in the mechanical properties. The tensile strength you gained during stretching remains permanent. Chiller systems must provide a continuous flow of cold water. Stagnant spots in the cooling bath cause uneven crystallization. Uneven crystallization leads directly to camber issues.

Embossing Depth Control

Embossing rollers require precise pneumatic pressure controls. They press a diamond pattern into the strap surface. This pattern maintains surface friction for hand tools and automated strapping heads. They must do this without compromising cross-sectional integrity. Too much pressure crushes the core strength. Too little pressure leaves a slick surface. Automated proportional valves ensure the embossing depth remains perfectly consistent regardless of line speed fluctuations.

Procurement Checklist: Specifying a Customizable PET Strapping Production Machine

PLC and HMI Requirements

Central control architectures define the capability of your entire facility. Look for top-tier systems like Siemens or Allen-Bradley. They offer real-time recipe management. Operators can switch between different strap dimensions instantly. They also give maintenance teams deep fault diagnostics. A robust Human-Machine Interface (HMI) logs historical trending data. This helps you track why a specific batch failed. You need this level of visibility when operating a customizable PET strapping production machine.

Component Redundancy

Industrial machinery must survive punishing environments. Assess the importance of specifying high-tier sensors. Demand premium drives and heavy-duty gearboxes. This ensures continuous control accuracy over a lengthy lifecycle. Cheaper sensors drift out of calibration quickly.

1. Melt Pressure Transducers: Must feature high-temperature ratings and auto-calibration capabilities.
2. Servo Drives: Specify closed-loop vector control for zero-slip performance on godet rollers.
3. Heating Elements: Ensure solid-state relays (SSRs) are used instead of mechanical contactors for precise PID temperature control.
4. Water Pumps: Install dual-pump systems to ensure continuous cooling bath circulation during maintenance.

Vendor Validation

Never buy equipment based on theoretical brochures. Test a prospective PET packaging belt production line rigorously. Request thorough capability studies. Measure the Process Capability Index (Cpk) on critical dimensions. You must verify strap width, thickness, and breaking load. Do this during a strict factory acceptance test. Run your own recycled flakes during this trial. If the machine cannot stabilize the melt using your specific materials, it will fail on your factory floor.

Conclusion

High-yield production means nothing if the output suffers from structural inconsistencies. Breaking strength dictates the actual value of your product. The true return on investment of a modern packaging belt line lies in auto-correction. Control systems must react instantly to material fluctuations. This holds especially true when you process challenging recycled inputs.

We advise buyers to prioritize control transparency. Demand advanced automation features. Focus heavily on synchronous drives, melt pumps, and closed-loop drying. Look beyond theoretical maximum speeds. Robust process controls guarantee long-term operational efficiency. They protect your brand reputation in heavy-load industrial markets.

FAQ

Q: How does a closed-loop control system improve PET strapping tensile strength?

A: A closed-loop system continuously measures line metrics like melt pressure, roller speed, and oven temperature. It feeds this data back to the central PLC. The system automatically adjusts drive motors and heaters instantly. This keeps the entire stretching and extrusion process within strict tolerances, ensuring perfect polymer chain alignment.

Q: Can a PET strapping production line maintain stable tensile strength using 100% recycled bottle flakes?

A: Yes. However, the line must feature advanced crystallization, deep dehumidification, and continuous melt filtration controls. These specific upgrades compensate for the wildly variable intrinsic viscosity and contamination levels found in standard rPET supplies.

Q: What is the most critical control point to prevent PET strap splitting?

A: The balance between the multi-stage draw ratio and the final annealing temperature is critical. Over-stretching the polymer chains without providing proper thermal relaxation causes high internal stress. This unresolved stress leads directly to longitudinal splitting under load.

Q: Why should I opt for a customizable PET strapping production machine over a standard model?

A: Custom models allow you to tailor the extruder screw design, oven lengths, and drive synchronization. You can match the machine to your specific raw materials, like 100% rPET. It also lets you dial in settings for targeted heavy-duty strap specifications.
