What Stretch Ratio Produces Strong PET Strapping?

For manufacturers investing in continuous extrusion technology, tensile strength remains the primary metric of success. It dictates whether a strap secures a massive steel load safely or snaps disastrously under pressure. Operators heavily control this final outcome through the stretch ratio applied during extrusion. Under-stretching wastes valuable raw materials instantly. It fails to achieve the optimal molecular alignment needed for robust strength. Conversely, over-stretching creates significant operational issues. It causes fibrillation, longitudinal splitting, and highly brittle belts. These flawed belts frequently fail under shifting transportation loads. Striking the perfect balance ensures product reliability and long-term operational efficiency. This guide breaks down the optimal stretch ratios for polyester strapping. We explore the deep molecular mechanics behind these mechanical ratios. You will also learn how to properly evaluate modern extrusion machinery. We highlight the critical features required to sustain these precise thermal and mechanical parameters consistently. You can optimize your production floor by mastering these specific tension techniques.

Key Takeaways

• The standard optimal stretch ratio for high-tensile PET strapping typically falls between 4.5:1 and 6.0:1, depending on raw material Intrinsic Viscosity (IV) and cooling processes.
• Molecular orientation achieved through multi-stage stretching directly dictates the final belt's tensile strength and creep resistance.
• Hitting exact stretch ratios consistently requires precise thermal control; inconsistent oven temperatures will result in uneven drawing and compromised batch quality.
• Evaluating a packaging belt production line should prioritize multi-stage drawing configurations, synchronized godet rollers, and adaptive tension controls.

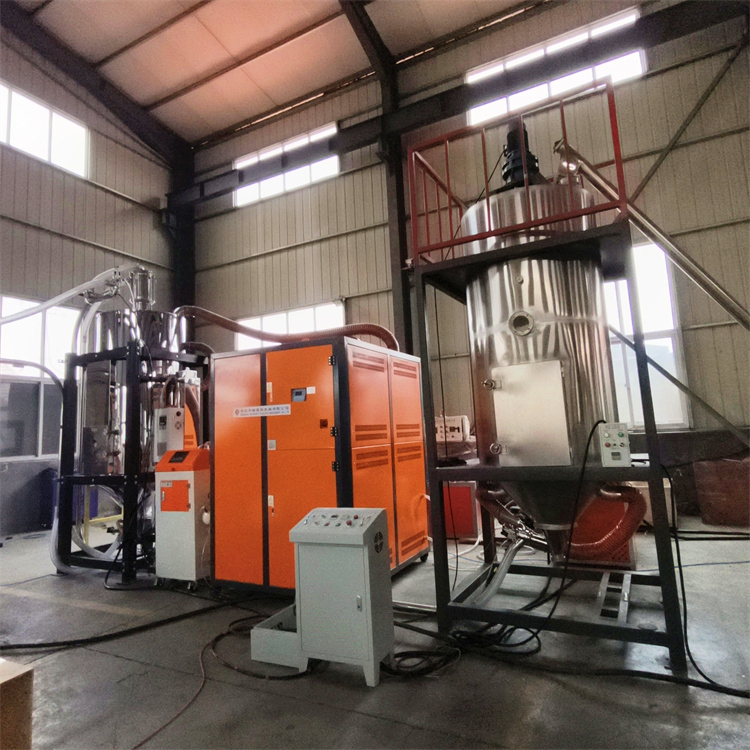

The Mechanics of Molecular Orientation in PET Strapping

Extruded PET initially emerges in a highly amorphous state. The polymer chains remain tangled in random patterns. They lack any structural direction. At this early stage, the plastic feels relatively weak and highly extensible. Stretching aligns these polymer chains longitudinally. We apply mechanical force while actively heating the material to its glass transition temperature. This specific process transitions the polymer into a crystallized, high-strength state. The chains lock into a highly organized, parallel structure. This molecular orientation creates the immense tensile strength associated with premium packaging belts.

The sweet spot for this drawing process typically sits between 4.5:1 and 6.0:1. We determine this specific range based on deep polymer science and empirical testing. Reaching this exact ratio maximizes longitudinal tensile strength. Simultaneously, it preserves enough lateral cohesion. This crucial cohesion prevents the strap from splitting vertically when folded or clamped.

Pushing stretch ratios too high introduces severe business and product quality risks. Over-stretching forces the polymer chains past their optimal crystalline alignment limit. This extreme tension actively destroys internal lateral bonds. You will quickly notice severe fibrillation. The belt easily splits down the middle when punctured. Furthermore, over-stretched belts suffer from drastically reduced elongation-at-break. They become excessively brittle and fragile. These belts often snap dynamically when cargo shifts suddenly during heavy transit.

Raw material selection heavily influences these stretch parameters. Virgin resin offers highly stable Intrinsic Viscosity (IV) levels. It handles aggressive stretching easily. In contrast, using 100% recycled PET (rPET) bottle flakes introduces fluctuating IV levels. Lower IV materials simply cannot withstand maximum stretch ratios without breaking repeatedly. Operators must carefully adjust the mechanical draw speed. You need advanced dehumidification to stabilize rPET thoroughly before extrusion. Operators running a modern PET strapping and packaging belt production line must adapt stretching parameters dynamically. They do this to match specific, shifting feedstock characteristics.

Aligning Stretch Parameters with Final Application Requirements

End-users rely on strapping for vastly different industrial applications. Lumber yards and steel manufacturing plants require maximum tensile strength. They also demand minimal material creep. Operators target the higher end of the stretch ratio spectrum for these heavy-duty applications. A 6.0:1 ratio delivers the rigid holding force necessary for dense, shifting construction materials. Standard applications, like corrugated box strapping, require different performance characteristics. We prioritize belt flexibility and edge protection over pure tensile strength. A slightly lower ratio, such as 4.8:1, serves these standard carton loads perfectly.

Balancing overall strength and elongation separates average products from premium ones. A high-quality PET belt must always retain 10-15% elongation. This vital elasticity allows the strap to absorb sudden, violent impacts without snapping. When a forklift drops a heavy pallet aggressively, the belt must stretch briefly. It must then recover its original tension quickly to keep the load secure.

Single-stage stretching frequently fails this strict success criteria. Pulling the material to its final ratio in one aggressive step destroys inherent elasticity. The resulting belt becomes far too rigid. Multi-stage stretching solves this persistent industry problem. We divide the drawing process across multiple temperature-controlled zones. This incremental, step-by-step alignment preserves necessary elasticity. It maximizes overall tensile strength while maintaining a critical shock-absorption buffer.

To achieve this balance successfully, follow these targeted steps:

1. Define the absolute maximum load weight for the target end-use application.
2. Identify whether the secured load naturally expands or contracts during shipment.
3. Select a target stretch ratio preserving at least a 10% elongation reserve.
4. Verify the mechanical strength constantly across multiple destructive batch tests.

Evaluating Equipment: What Makes a Reliable PET Strapping Production Line?

A reliable PET strapping production line relies entirely on precise mechanical execution. Multi-stage drawing ovens represent the core of this engineering capability. A standard machine must feature hot-air circulation ovens or advanced heating plates. These thermal components require strictly segmented temperature control. We need the ability to heat the polymer gradually as it stretches. Consistent thermal transfer prevents snapping during high-speed, continuous production runs.

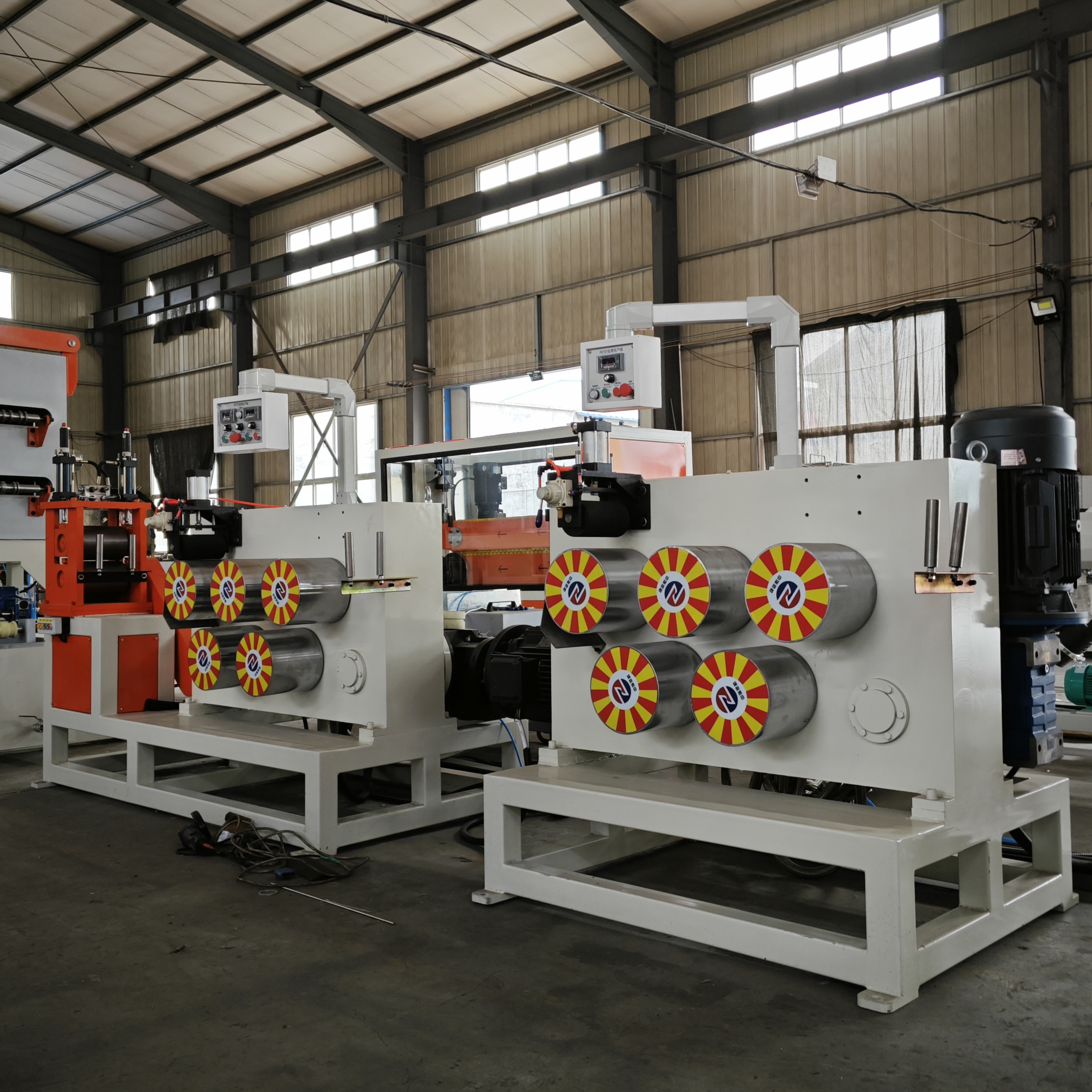

Godet rollers directly drive the physical stretching process. These heavy-duty stretching rollers must feature exceptionally precise gearing. Synchronization between the slow and fast roller stations dictates the exact draw ratio. Even minor slippage across the godet rollers completely ruins the molecular alignment. High-friction roller coatings and robust servo motors eliminate this slippage risk entirely. They ensure a steady, relentless pull.

Attaining a high stretch ratio means nothing without proper secondary heat setting. Annealing locks the newly aligned molecular structure permanently into place. We pass the stretched belt through a final relaxation oven. This specific heat treatment relieves internal molecular stresses generated during the intense drawing phase. It prevents severe post-production shrinkage. Without careful annealing, belts warp, curl, and lose tension days after packaging.

Look for continuous compliance and strict quality control integrations. Heavy production runs require constant inline tension monitoring. Automatic gauge controls measure belt thickness and width in real time. These sensitive sensors detect minor variations immediately. Operators can adjust the roller speeds rapidly before producing a large defective batch.

Equipment Evaluation Matrix

Upgrading to a Customizable PET Strapping Production Machine

Manufacturing bottlenecks often emerge as market demands shift rapidly. Modular systems allow manufacturers to adapt operations quickly and efficiently. You can add secondary stretching zones directly into the existing line. Upgrading primary oven capacities helps support much faster line speeds. A customizable PET strapping production machine scales seamlessly alongside your growing business operations.

Automation transforms complex parameter adjustments into a straightforward, seamless process. Programmable Logic Controllers (PLCs) provide immense operational value here. We use them to store specific, tested stretch ratio recipes. A 12mm width belt requires entirely different mechanical tension than a 19mm heavy-duty belt. Operators simply select the appropriate recipe on the digital touchscreen. The control system automatically adjusts godet roller speeds and oven temperatures. This automation reduces costly human error significantly.

Risk mitigation strongly drives the push for system modularity. Entry-level or highly rigid setups fail predictably when raw material quality fluctuates. You cannot easily adapt standard lines to handle lower-grade recycled materials. Changing feedstock frequently causes costly line stoppages on basic extrusion machines. Advanced customizable machines prevent these frustrating delays. They offer highly adaptive tension controls and much wider thermal operating windows. You maintain continuous, profitable output regardless of slight raw material inconsistencies.

Best practices for recipe management:

• Regularly calibrate PLC inputs against physical belt destruct tests.
• Store separate, distinct recipes for virgin resin and varying rPET blends.
• Limit manual override permissions strictly to senior technicians only.

Shortlisting an Innovative PET Packaging Belt Production Line

Selecting the right equipment vendor requires rigorous evaluation criteria. Begin by demanding total engineering transparency upfront. A trustworthy vendor will happily provide empirical data regarding their equipment. Ask them to scientifically prove the maximum achievable draw force. Review their historical data on motor torque and roller stability under maximum load. An innovative PET packaging belt production line thrives on verifiable mechanical strength rather than pure speculation.

Next, thoroughly assess overall energy efficiency. Stretching ovens consume massive amounts of industrial electricity. Evaluate the advanced thermal retention capabilities of these specific heating zones. Superior insulation prevents ambient heat loss and stabilizes internal drawing temperatures. This thermal efficiency directly impacts the consistency of your stretch ratios. Stable temperatures prevent sudden material snapping.

Always verify their physical material testing capabilities. Never purchase heavy machinery based solely on a marketing brochure. Request a comprehensive pilot test using your specific rPET flakes. We strongly recommend sending your actual daily feedstock directly to the supplier. They must definitively prove their machine can achieve the target tensile strength outcomes. They must do this using your specific material under real-world conditions. If the supplier refuses a pilot run, consider it a major warning sign. Investing in a robust PET packaging belt production line ensures reliable molecular orientation for years.

Vendor Capability Comparison Chart

Conclusion

Achieving the ideal stretch ratio elegantly blends deep polymer science with precise mechanical execution. We cannot rely on blind guesswork when defining vital tensile strength. Careful temperature management and synchronized multi-stage drawing directly control final product reliability. Mastering these extrusion dynamics ensures your belts secure loads safely across global supply chains.

Actionable next steps:

• Audit your current production line for dedicated multi-stage drawing capabilities.
• Analyze your primary oven thermal precision using external, calibrated laser tools.
• Evaluate your existing machinery's ability to handle varying material IVs safely without breaking.
• Partner exclusively with vendors who prove their mechanical capabilities through material-specific pilot testing.
• Update your internal PLC recipes to separate drawing parameters for heavy-duty versus standard applications.

FAQ

Q: What happens if the stretch ratio in PET strapping is too low?

A: Under-stretched material retains an amorphous, weak molecular structure. The strapping will exhibit exceptionally low tensile strength and suffer from excessive stretch under tension, known as creep. Ultimately, it will fail to secure heavy loads effectively during transit.

Q: Can I use the same stretch ratio for both PP and PET strapping?

A: No. Polypropylene (PP) and Polyester (PET) possess entirely different molecular structures and melting points. You cannot swap parameters blindly. An effective extrusion system must be explicitly designed or comprehensively reconfigured for PET’s specific thermal characteristics and precise drawing requirements.

Q: How does recycled PET (rPET) affect the required stretch ratio?

A: Recycled bottle flakes often present lower or highly inconsistent Intrinsic Viscosity (IV) compared to virgin resin. Operators usually need to adjust the stretch ratio slightly downward. Alternatively, you must rely on production machinery featuring robust dehumidification and solid-state polycondensation (SSP) capabilities to maintain high ratios safely.

Q: How do I verify the stretch ratio on a prospective production line?

A: You must review the machine's exact speed differential capabilities between the first and second godet roller stations. Advanced, modern systems provide digital readouts and tight tolerance controls. These interfaces confirm the exact mechanical draw occurring in real time.
